With impressive patterns and efficient installation, AVA SWAY® Chevron and Herringbone planks bring timeless elegance and style without the hassles. Pre-cut specifically for less material waste, easier installation and precise fit, SWAY® is available in six colors in both formats: 2.5 mm glue-down construction and 6.0 mm HDC clic. SWAY®, with our proprietary AMP coating, stands up to high traffic areas in a variety of Residential and Commercial applications. All colors are also available in 6” x 48” glue-down plank (pre-cut 90˚ angle).

Chevron Size

4.5” x 22.5”

Herringbone Size

6" x 24"

Plank Size

6" x 48"

Wear Layer

22 mil (0.55 mm)

Overall Thickness

2.5 mm

Warranty

20-Year Heavy Commercial and Lifetime Residential

Chevron Size

5.71” x 26.2”

Herringbone Size

5.71” x 29.25”

Wear Layer

22 mil (0.55 mm)

Overall Thickness

6.0 mm

Warranty

15-Year Light Commercial and Lifetime Residential

SWAY Chevron Colors – Glue Down 4.5" x 22.5"

: SWAY Chevron Glue Down Vienna Oak Manor VO001CHEV 2555

: SWAY Chevron Glue Down English Oak Veil EO002CHEV 2555

: SWAY Chevron Glue Down English Oak Toffee EO001CHEV 2555

: SWAY Chevron Glue Down Alabaster Oak Villa AB002CHEV 2555

: SWAY Chevron Glue Down Alabaster Oak Sierra AB001CHEV 2555

: SWAY Chevron Glue Down Acacia Oak Primrose AC001CHEV 2555

SWAY Chevron Colors – HDC Clic 5.71" x 26.2"

: SWAY Chevron HDC Vienna Oak Manor VO001SCHEV 655C

: SWAY Chevron HDC English Oak Veil EO002SCHEV 655C

: SWAY Chevron HDC English Oak Toffee EO001SCHEV 655C

: SWAY Chevron HDC Alabaster Oak Villa AB002SCHEV 655C

: SWAY Chevron HDC Alabaster Oak Sierra AB001SCHEV 655C

: SWAY Chevron HDC Acacia Oak Primrose AC001SCHEV 655C

SWAY Herringbone Colors – Glue Down 6" x 24"

: SWAY Herringbone Glue Down Vienna Oak Manor VO001HERR 2555

: SWAY Herringbone Glue Down English Oak Veil EO002HERR 2555

: SWAY Herringbone Glue Down English Oak Toffee EO001HERR 2555

: SWAY Herringbone Glue Down Alabaster Oak Villa AB002HERR 2555

: SWAY Herringbone Glue Down Alabaster Oak Sierra AB001HERR 2555

: SWAY Herringbone Glue Down Acacia Oak Primrose AC001HERR 2555

SWAY Herringbone Colors – HDC Clic 5.71" x 29.25"

: SWAY Herringbone HDC Vienna Oak Manor VO001SHERR 655C

: SWAY Herringbone HDC English Oak Veil EO002SHERR 655C

: SWAY Herringbone HDC English Oak Toffee EO001SHERR 655C

: SWAY Herringbone HDC Alabaster Oak Villa AB002SHERR 655C

: SWAY Herringbone HDC Alabaster Oak Sierra AB001SHERR 655C

: SWAY Herringbone HDC Acacia Oak Primrose AC001SHERR 655C

SWAY Plank Colors – Glue Down 6" x 48"

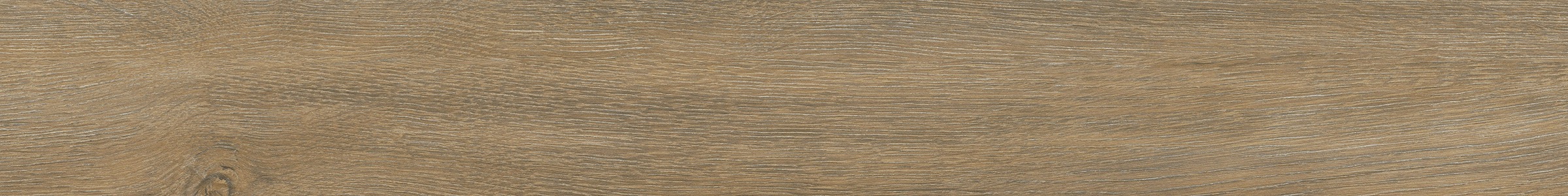

: SWAY Glue Down 6″ x 48″ Vienna Oak Manor VO001-2555

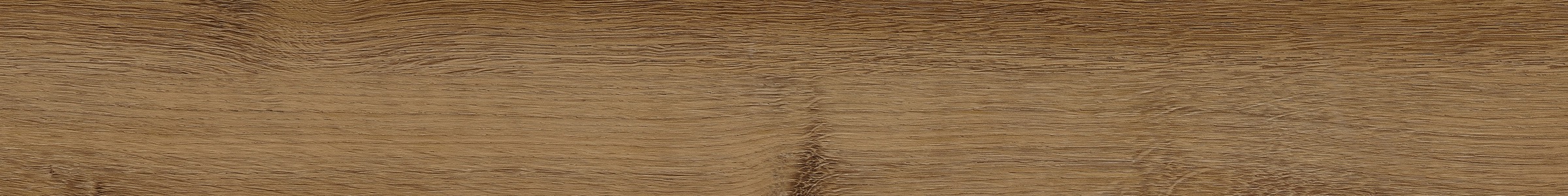

: SWAY Glue Down 6″ x 48″ English Oak Veil EO002-2555

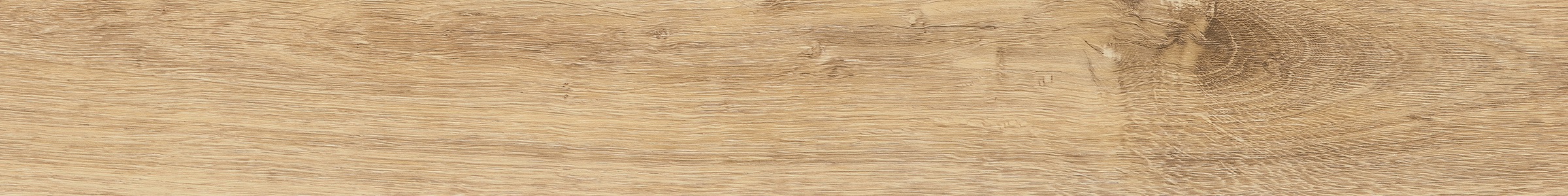

: SWAY Glue Down 6″ x 48″ English Oak Toffee EO001-2555

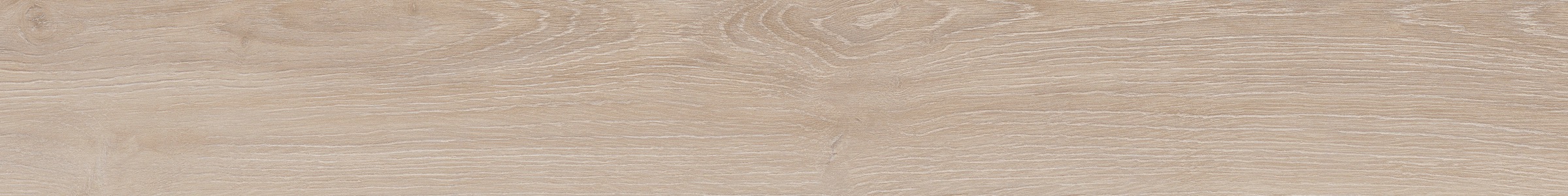

: SWAY Glue Down 6″ x 48″ Alabaster Oak Villa AB002-2555

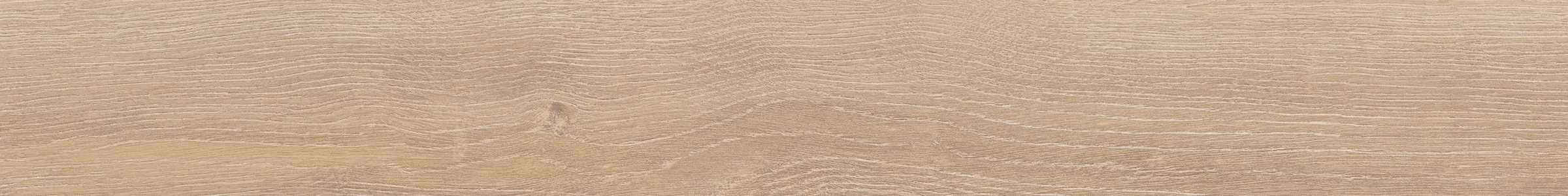

: SWAY Glue Down 6″ x 48″ Alabaster Oak Sierra AB001-2555

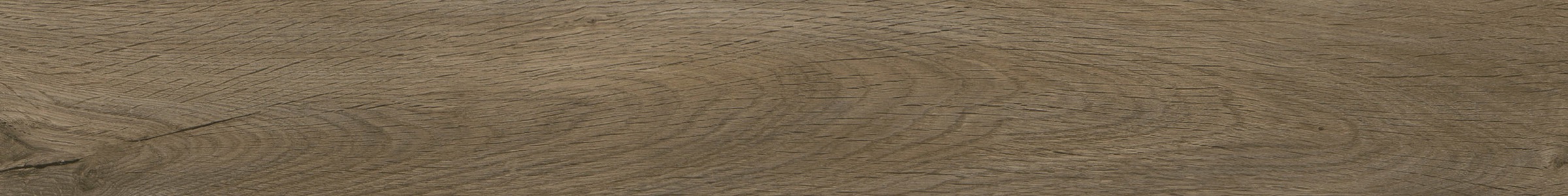

: SWAY Glue Down 6″ x 48″ Acacia Oak Primrose AC001-2555

Compare SWAY Styles

Left: Chevron / Right: Herringbone

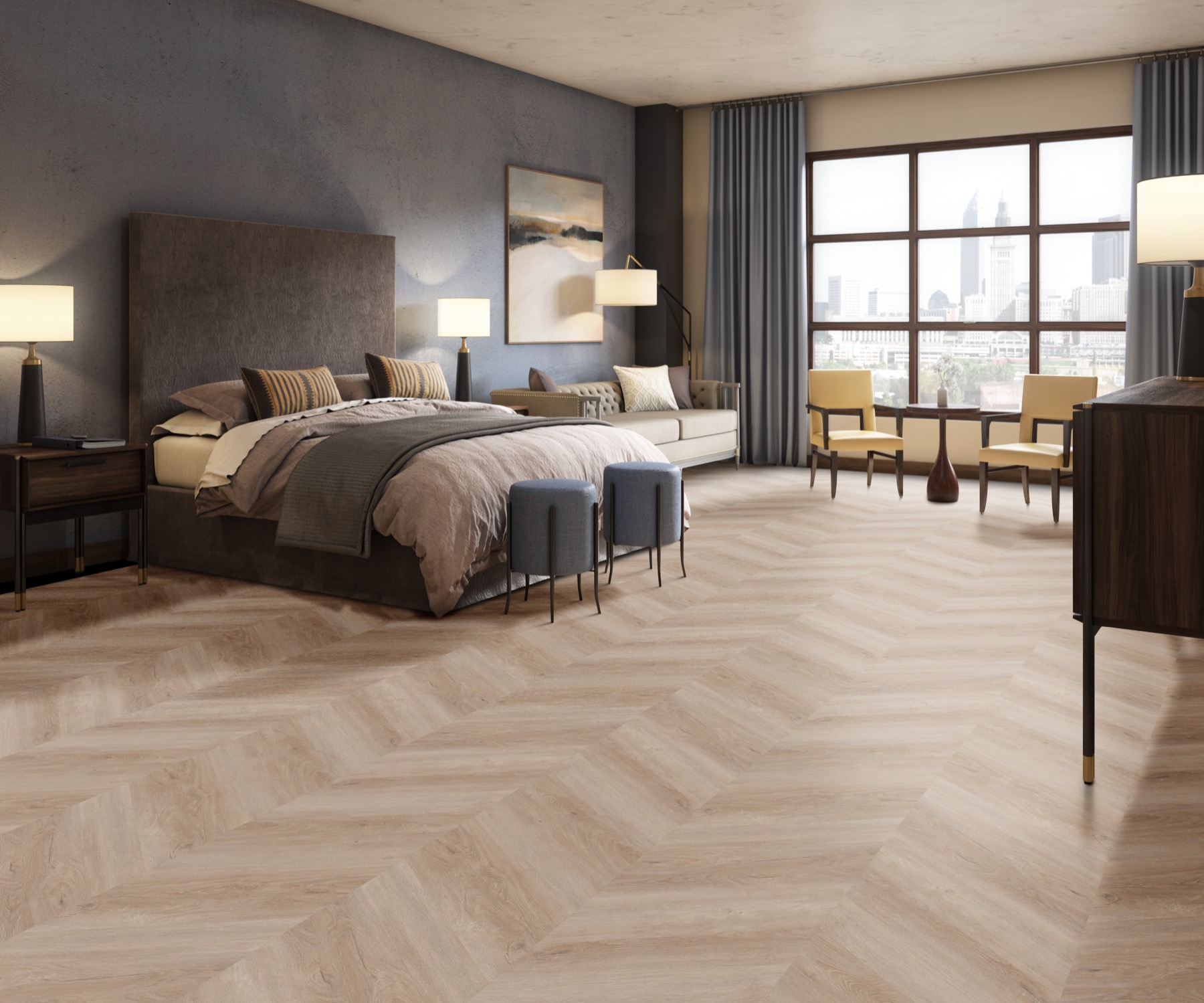

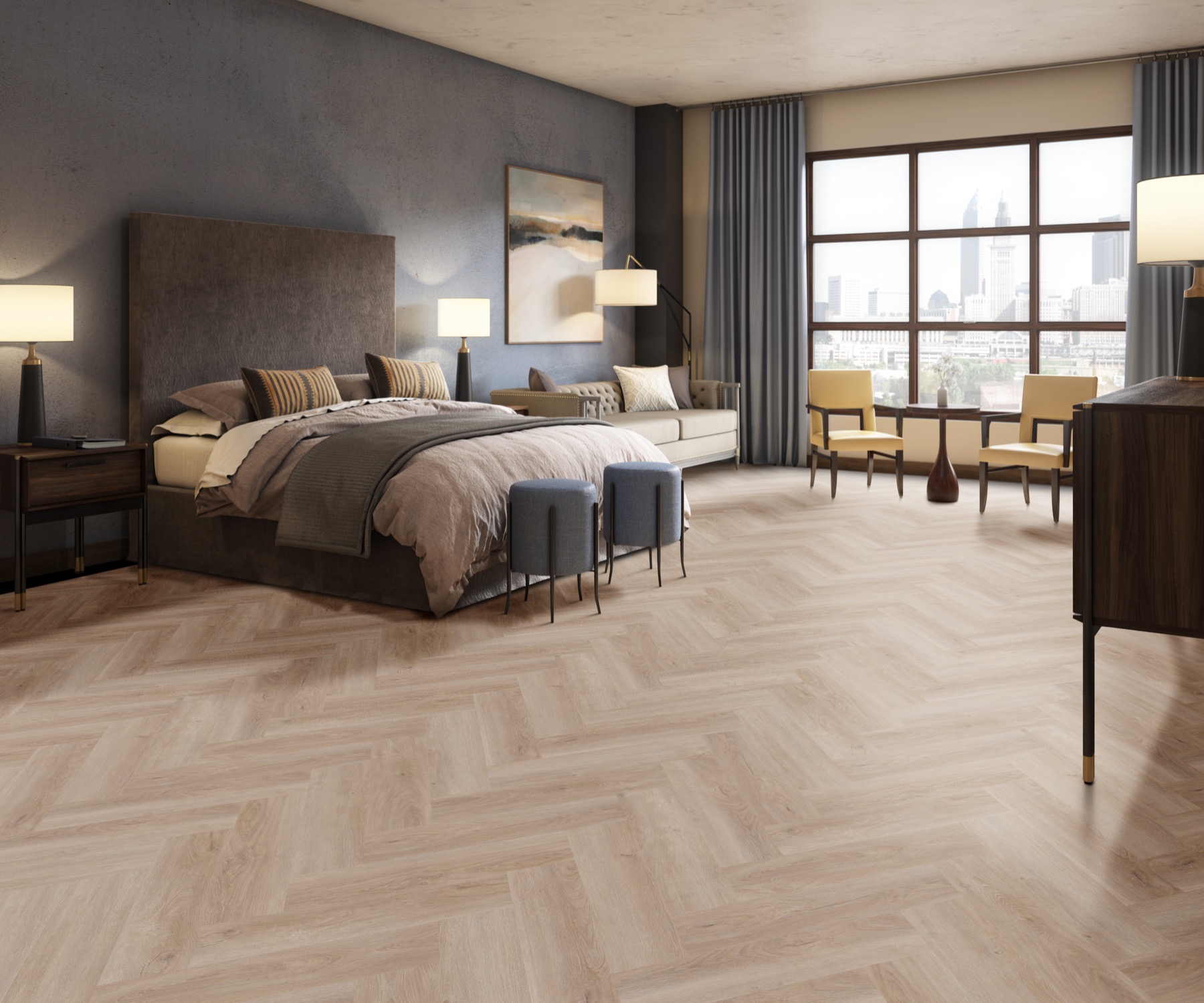

Alabaster Oak Villa

Vienna Oak Manor

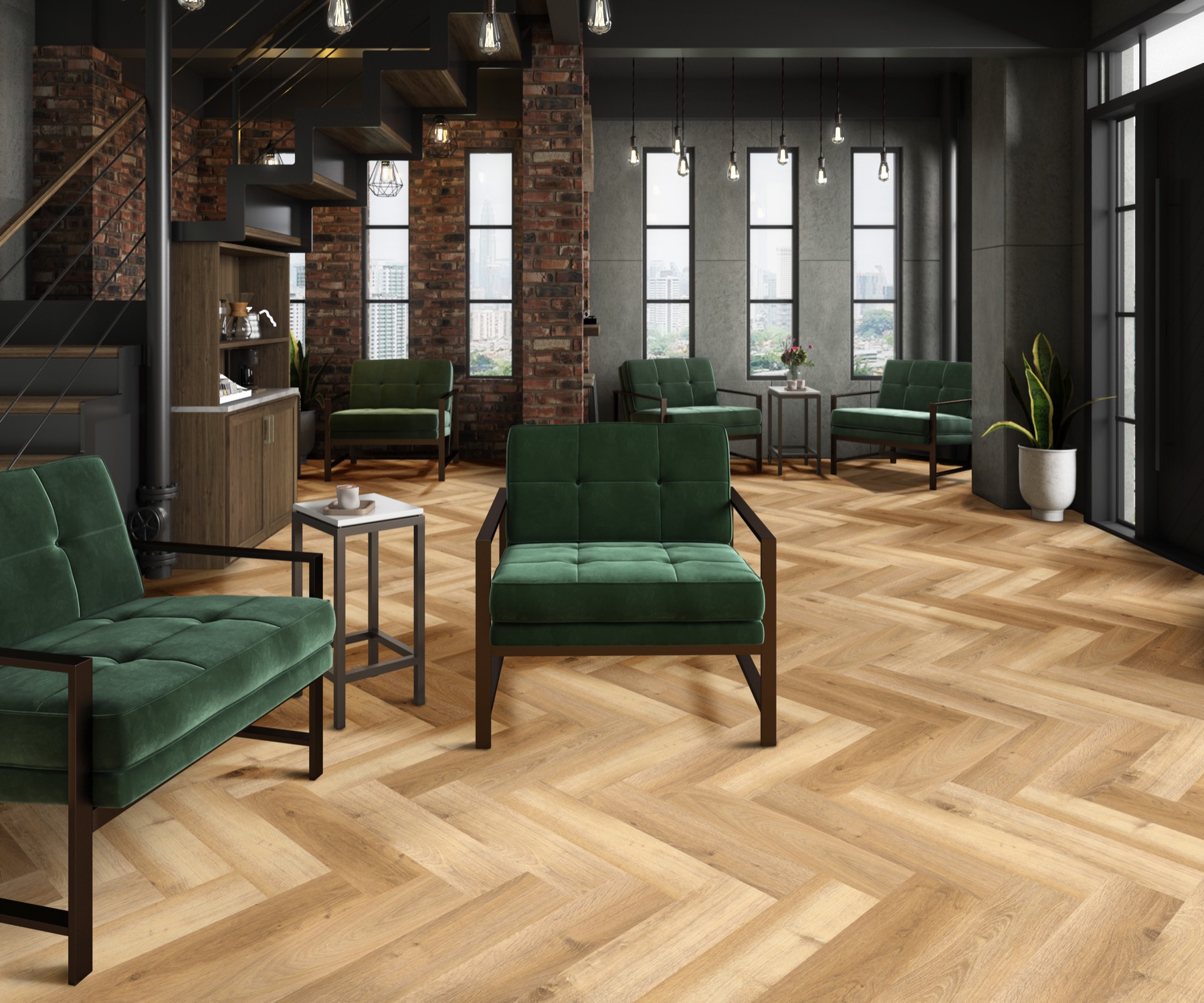

SWAY Chairs_EnglishOakToffee_Herringbone

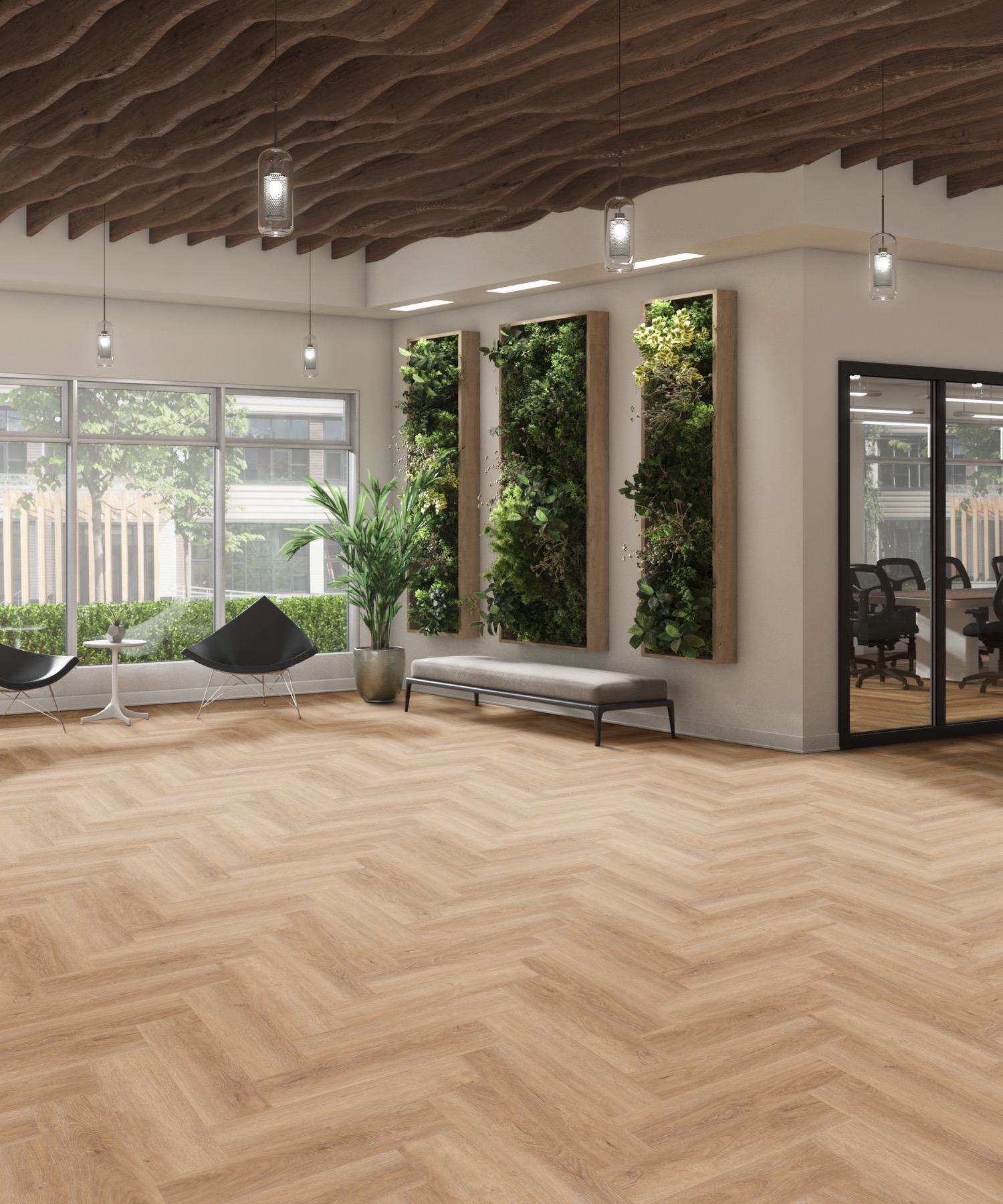

Alabaster Oak Sierra

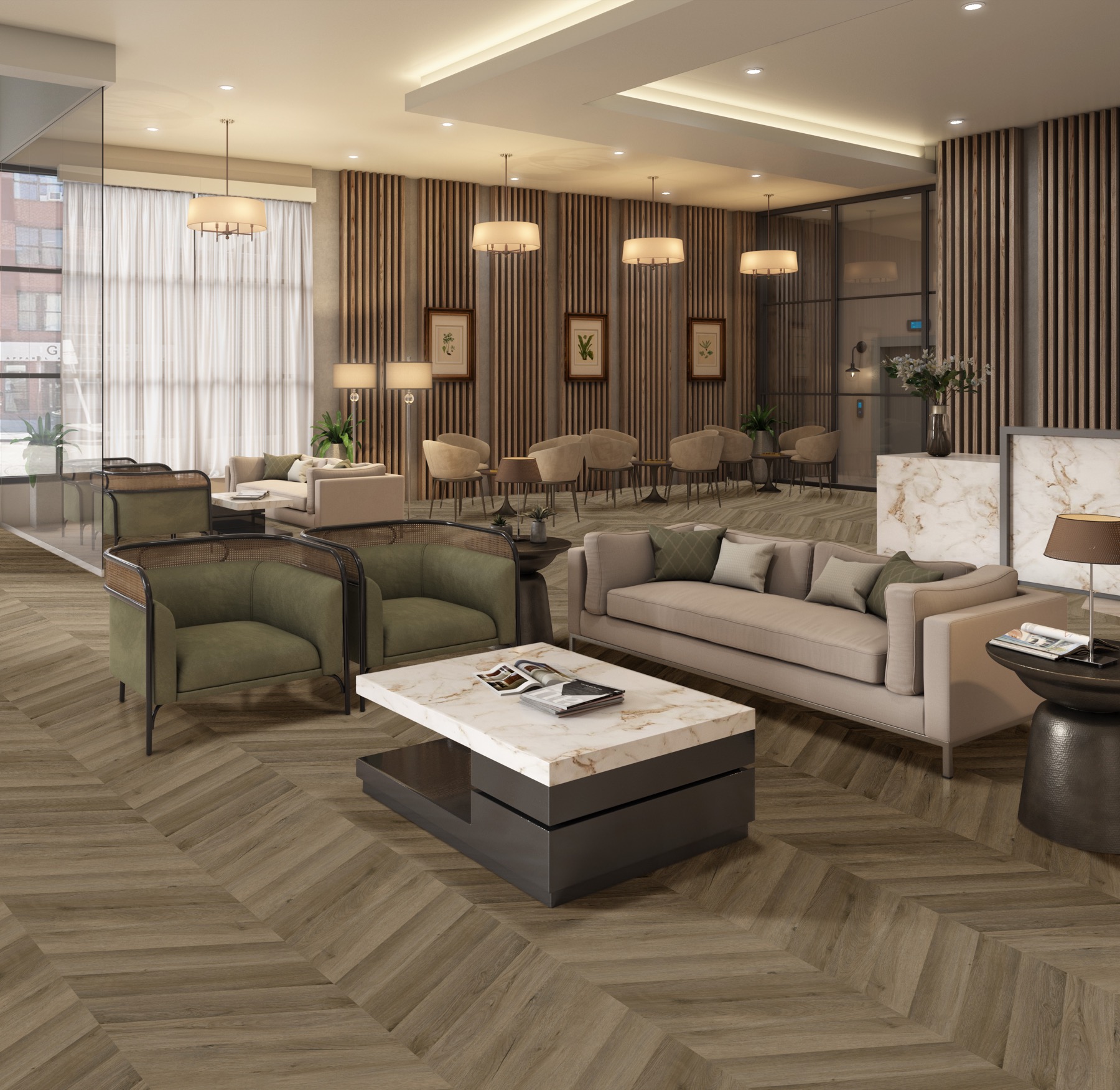

Acacia Oak Primrose

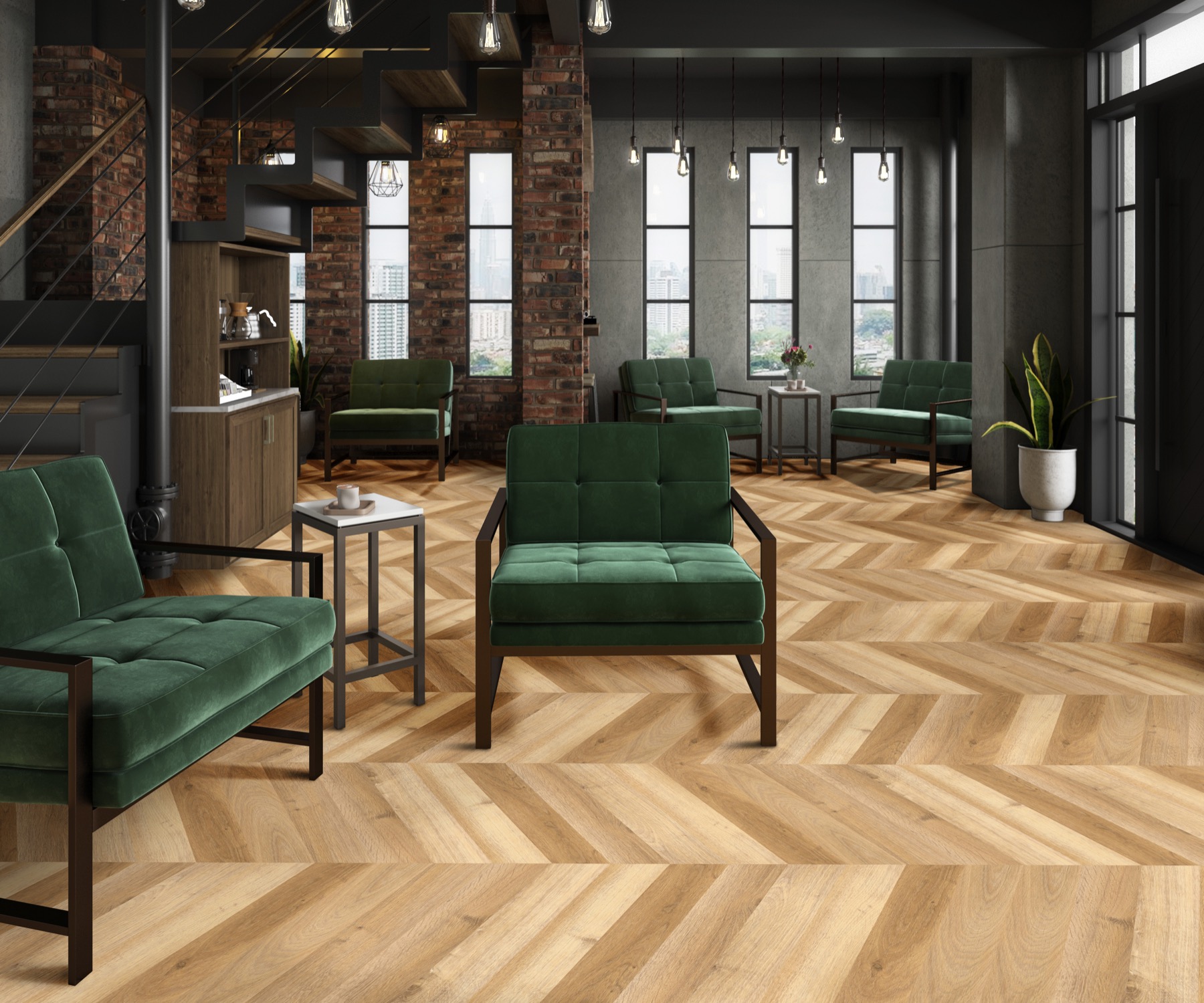

English Oak Toffee

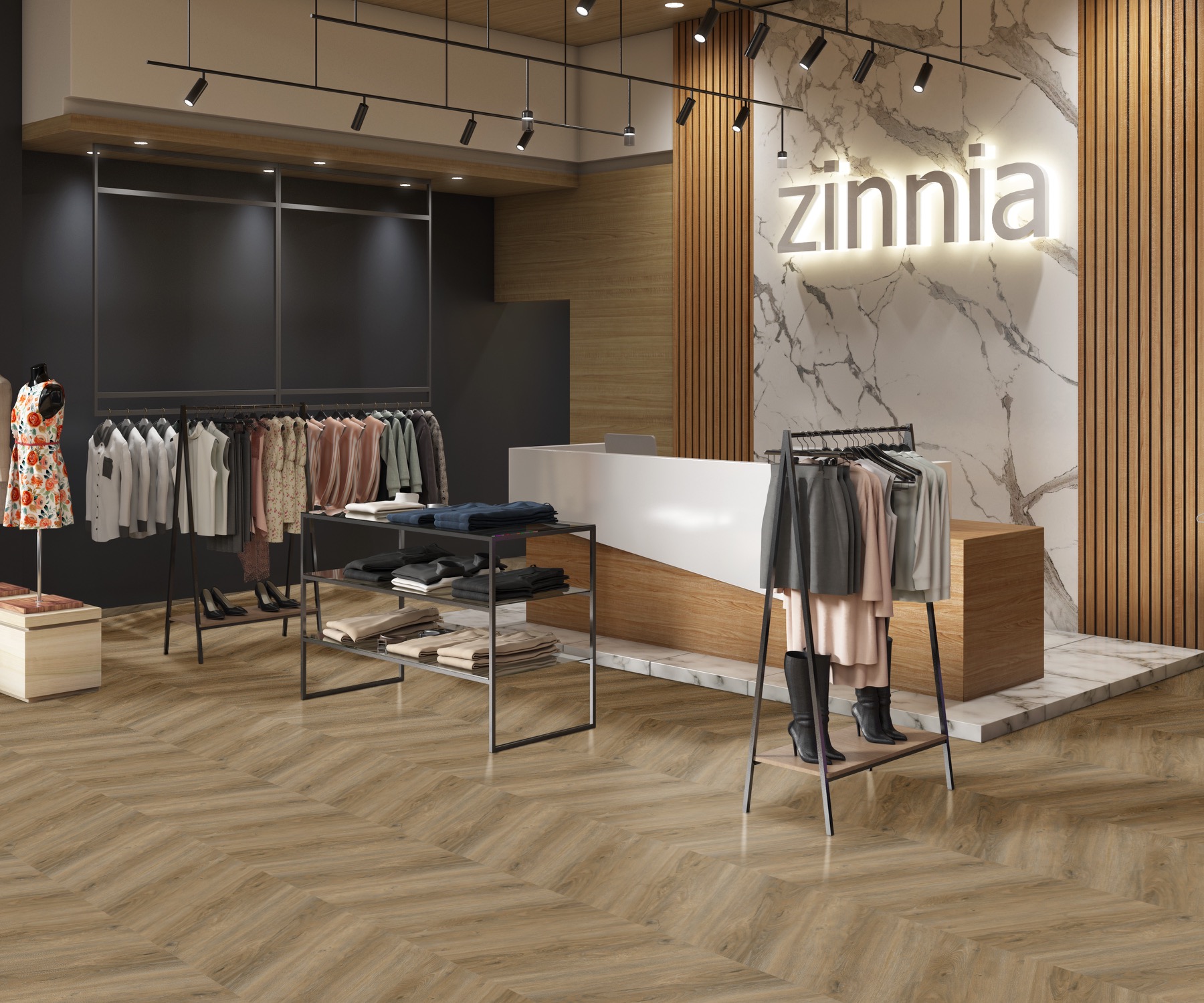

SWAY Retail_Vienna Oak Manor_Herringbone

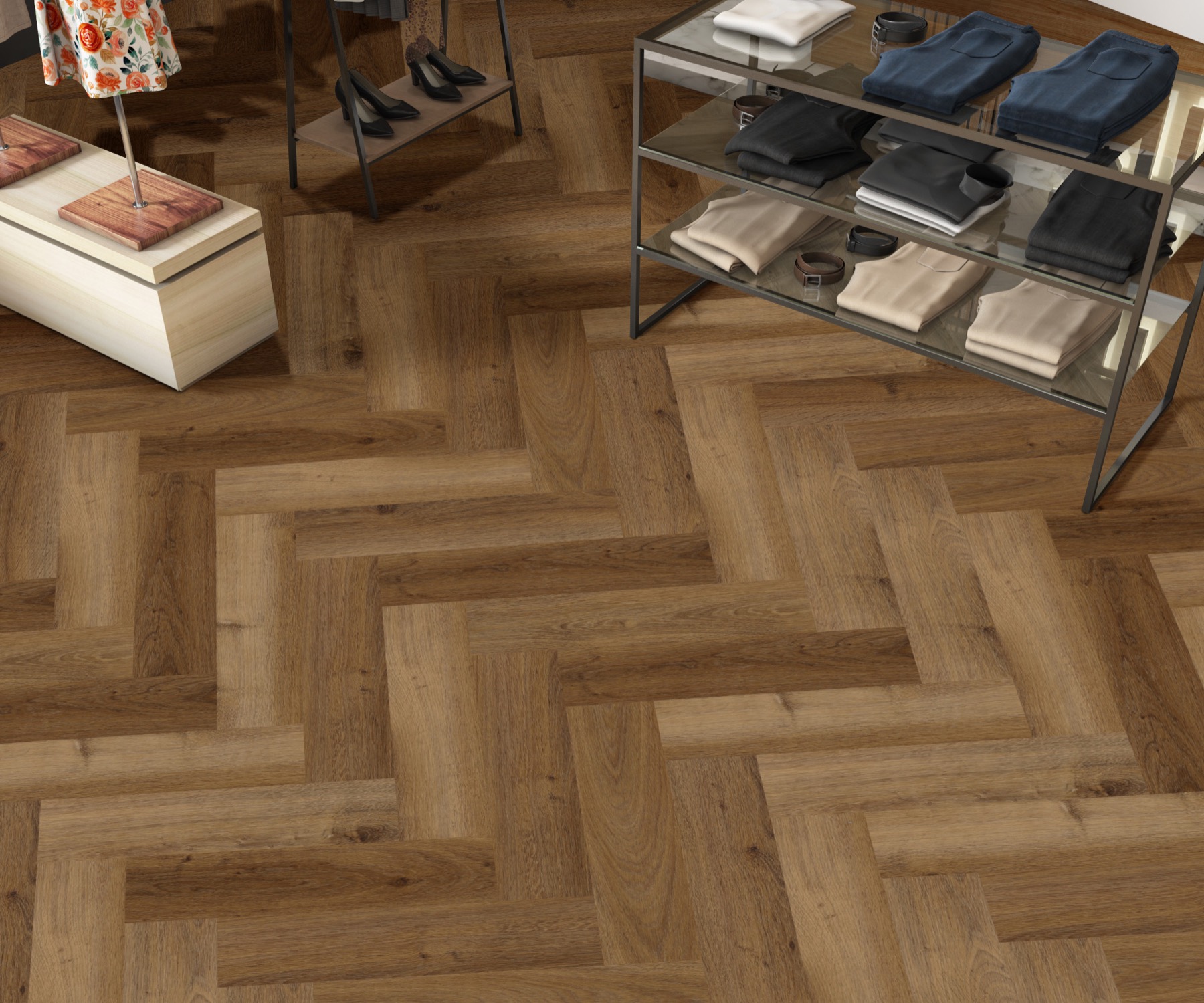

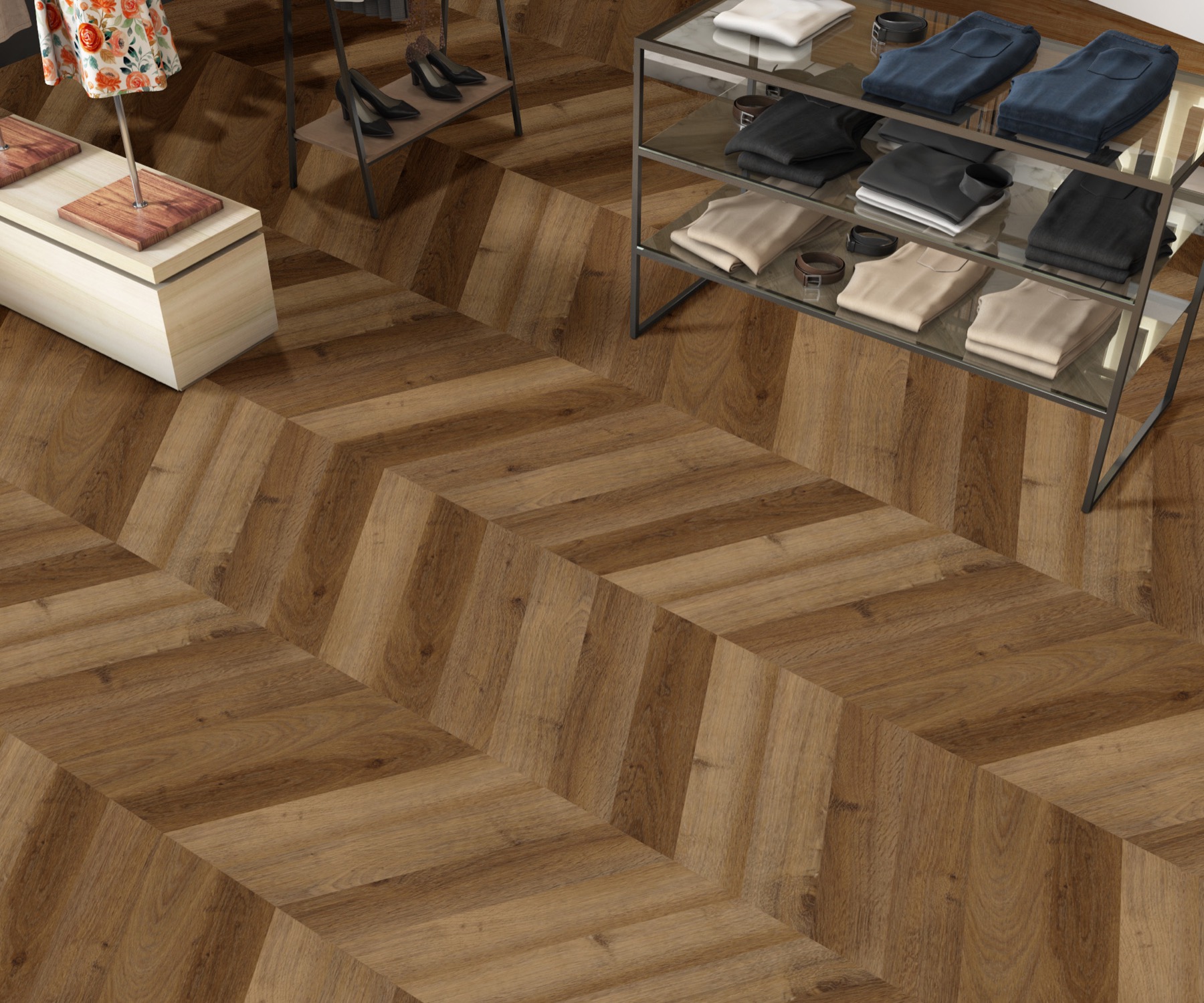

English Oak Veil

Documents / Links

Tech Info – LVT

Tech Info – HDC Chevron

Tech Info – HDC Herringbone

Folder

Product Sheet

Sustainability

Chevron Dimensions

Herringbone Dimensions

Glue-Down LVT

Product Construction Code:	CN LVT 2.5mm (0.55 wl, 1X)
ASTM F1700 - Solid Vinyl Tile Specification:	Class III, Type B
ASTM F2055 - Size:	Passes, ± 0.4 mm
ASTM F387 - Thickness of Resilient Flooring:	Passes, ± 0.13 mm
ASTM F410 - Wear Layer Thickness:	Passes, ≥ 0.5 mm
ASTM F2055 - Squareness:	Passes, ± 0.25 mm
ASTM F1914 - Residual Indentation:	Passes, ≤ 0.2 mm
ASTM F137 - Flexibility:	Passes, 25.4 mm mandrel
ASTM F2199 - Dimensional Stability:	Passes, < 0.5 mm / lin. ft.
ASTM F925 - Chemical Resistance:	Passes ASTM F1700 requirements
ASTM F1514 - Resistance to Heat:	Passes, < ΔE 8
ASTM F1515 - Resistance to Light:	Passes, < ΔE 8
ASTM F970 - Static Load (Modified):	≤ 0.4 mm indent, 1500 lbs.
ASTM E648 (NFPA 253) - Critical Radiant Flux:	Class 1, > 0.45 W/cm2
ASTM E662 (NFPA 258) - Smoke Density:	Passes, < 450
ASTM D2047 - Slip Resistance:	> 0.5 SCOF (no ramps)
ASTM E492 / E989 - Impact Insulation Class:	IIC 55* (w/ F-22-SCU)
ASTM E90 / E413 - Sound Transmission Class:	STC 50* (w/ F-22-SCU)
ASTM E2179 - Delta Impact Insulation Class:	ΔIIC 24* (w/ F-22-SCU)
	* 6" concrete

HDC Chevron

ASTM F3261 - Rigid Core Specification:	Class I, Type B, Grade 1, Backing Class B
ISO 24337 - Size & Squareness:	Passes, ± 1.5 mm size, ± 0.25 mm squareness
ASTM F387 - Thickness of Flooring w/ Foam Layer:	Passes, ± 0.2 mm
ASTM F410 - Wear Layer Thickness:	Passes, ≥ 0.5 mm
ISO 24337 - Flatness:	Passes, ± 0.2 mm width, < 0.2% length
ISO 24337 - Joint Opening:	Passes, ≤ 0.2 mm
ISO 24337 - Joint Ledging:	Passes, ≤ 0.15 mm
ASTM F1914 - Residual Indentation:	Passes, ≤ 0.18 mm
ASTM F1914 - Surface Integrity:	Passes, no puncture
ISO 23999 - Dimensional Stability:	Passes, ≤ 0.2% / lin. ft.
ISO 23999 - Curl:	Passes, ≤ 2 mm
ASTM F925 - Chemical Resistance:	Passes ASTM F3621 requirements
ASTM F1514 - Resistance to Heat:	Passes, < ΔE 8
ASTM F1515 - Resistance to Light:	Passes, < ΔE 8
ASTM F970 - Static Load:	Passes, ≤ 0.13 mm indent, 250 lbs.
ASTM E648 (NFPA 253) - Critical Radiant Flux:	Class 1, > 0.45 W/cm2
ASTM E662 (NFPA 258) - Smoke Density:	Passes, < 450
ASTM D2047 / UL 410 - Slip Resistance:	> 0.5 SCOF (no ramps)
ASTM E492 / E989 - Impact Insulation Class:	IIC 53*, 51¥, 64§
ASTM E90 / E413 - Sound Transmission Class:	STC 51*, 59¥, 62§
ASTM E2179 - Delta Impact Insulation Class:	ΔIIC 22*
	* 6" concrete \| ¥ 18" OWT \| §6" concrete, gypsum ceiling

HDC Herringbone

ASTM F3261 - Rigid Core Specification:	Class I, Type B, Grade 1, Backing Class B
ISO 24337 - Size & Squareness:	Passes, ± 1.5 mm size, ± 0.25 mm squareness
ASTM F387 - Thickness of Flooring w/ Foam Layer:	Passes, ± 0.2 mm
ASTM F410 - Wear Layer Thickness:	Passes, ≥ 0.5 mm
ISO 24337 - Flatness:	Passes, ± 0.2 mm width, < 0.2% length
ISO 24337 - Joint Opening:	Passes, ≤ 0.2 mm
ISO 24337 - Joint Ledging:	Passes, ≤ 0.15 mm
ASTM F1914 - Residual Indentation:	Passes, ≤ 0.18 mm
ASTM F1914 - Surface Integrity:	Passes, no puncture
ISO 23999 - Dimensional Stability:	Passes, ≤ 0.2% / lin. ft.
ISO 23999 - Curl:	Passes, ≤ 2 mm
ASTM F925 - Chemical Resistance:	Passes ASTM F3621 requirements
ASTM F1514 - Resistance to Heat:	Passes, < ΔE 8
ASTM F1515 - Resistance to Light:	Passes, < ΔE 8
ASTM F970 - Static Load:	Passes, ≤ 0.13 mm indent, 250 lbs.
ASTM E648 (NFPA 253) - Critical Radiant Flux:	Class 1, > 0.45 W/cm2
ASTM E662 (NFPA 258) - Smoke Density:	Passes, < 450
ASTM D2047 / UL 410 - Slip Resistance:	> 0.5 SCOF (no ramps)
ASTM E492 / E989 - Impact Insulation Class:	IIC 53*
ASTM E90 / E413 - Sound Transmission Class:	STC 53*
ASTM E2179 - Delta Impact Insulation Class:	ΔIIC 21*
	* 6" concrete
