ORBTTM

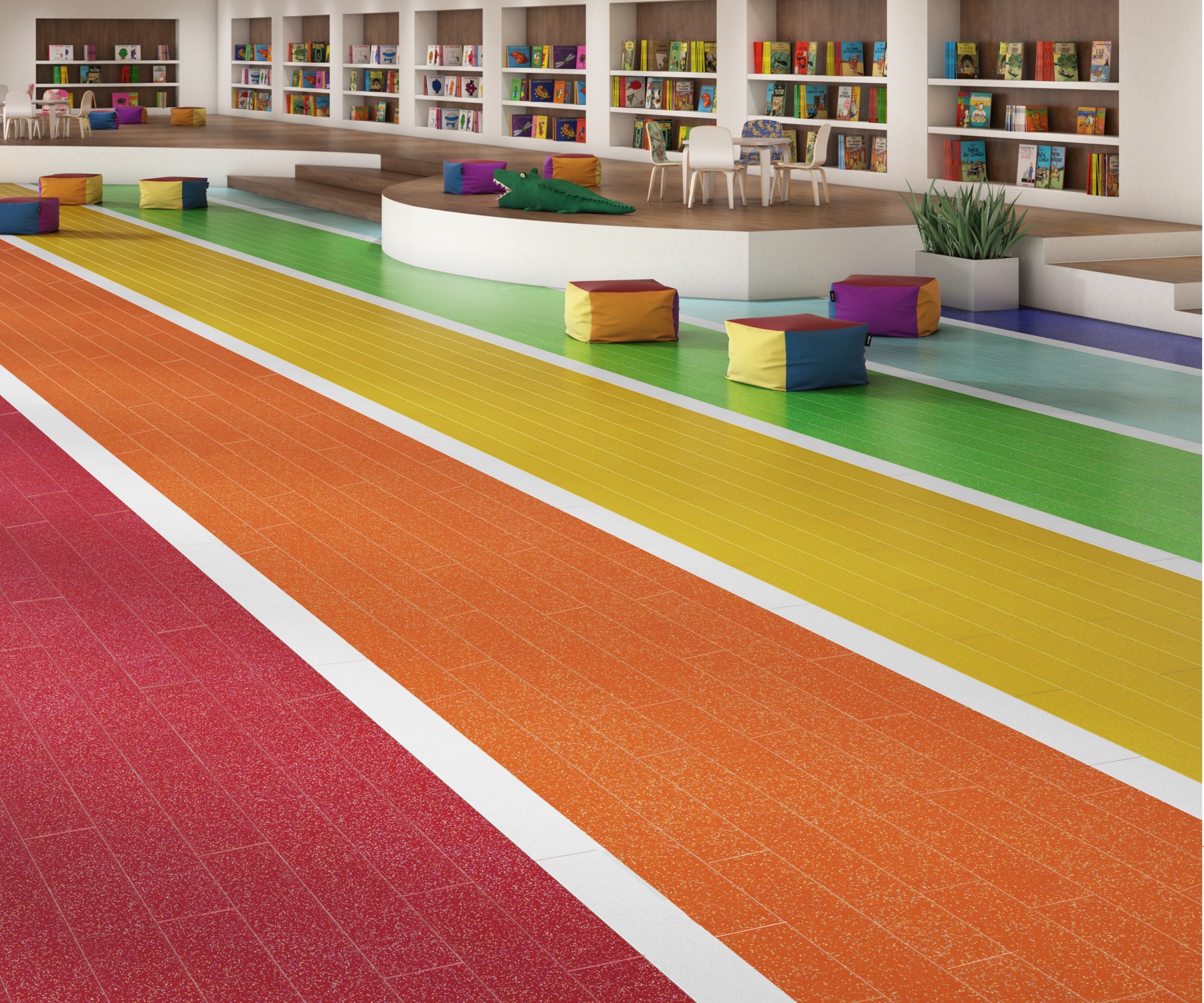

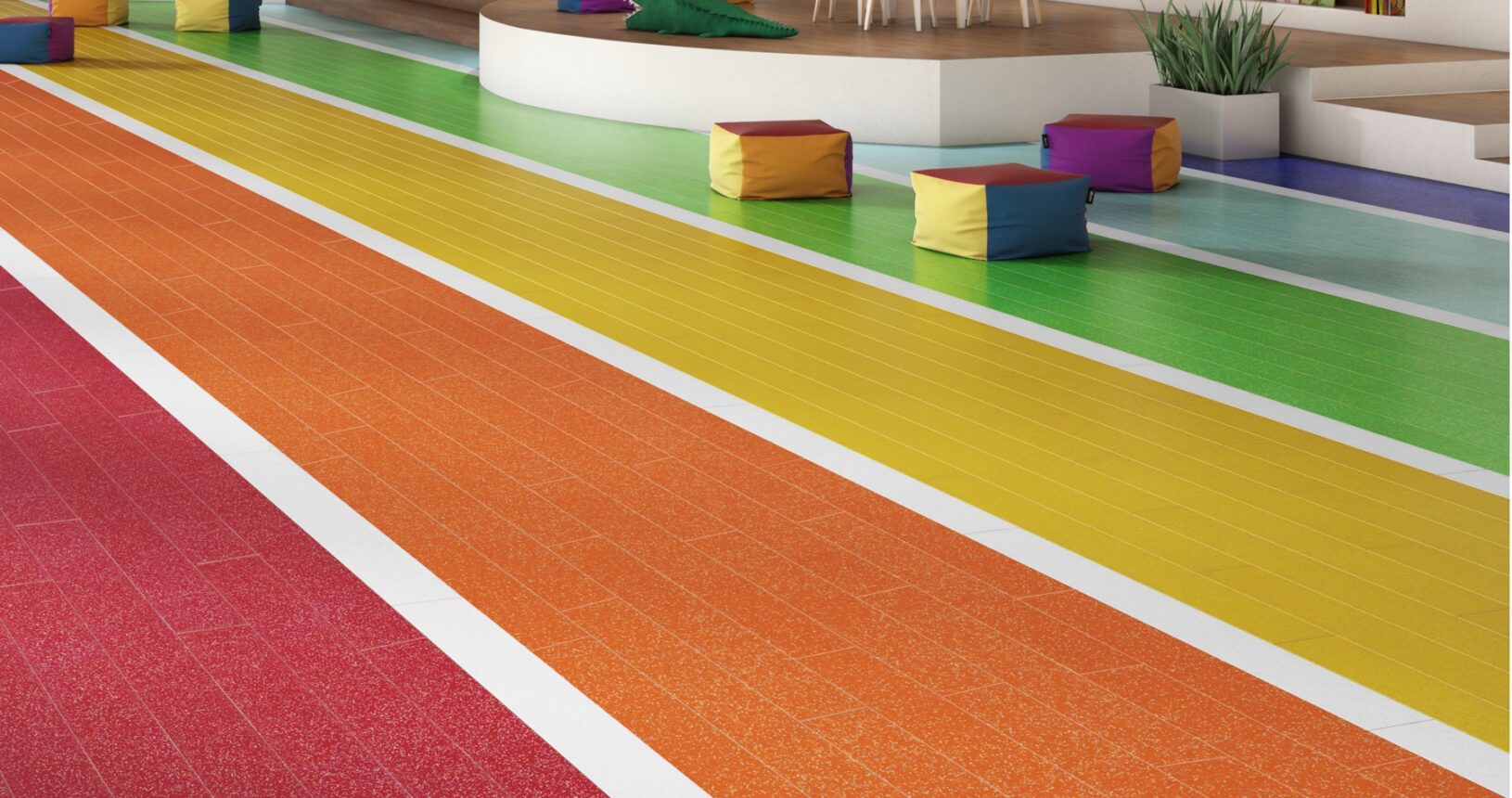

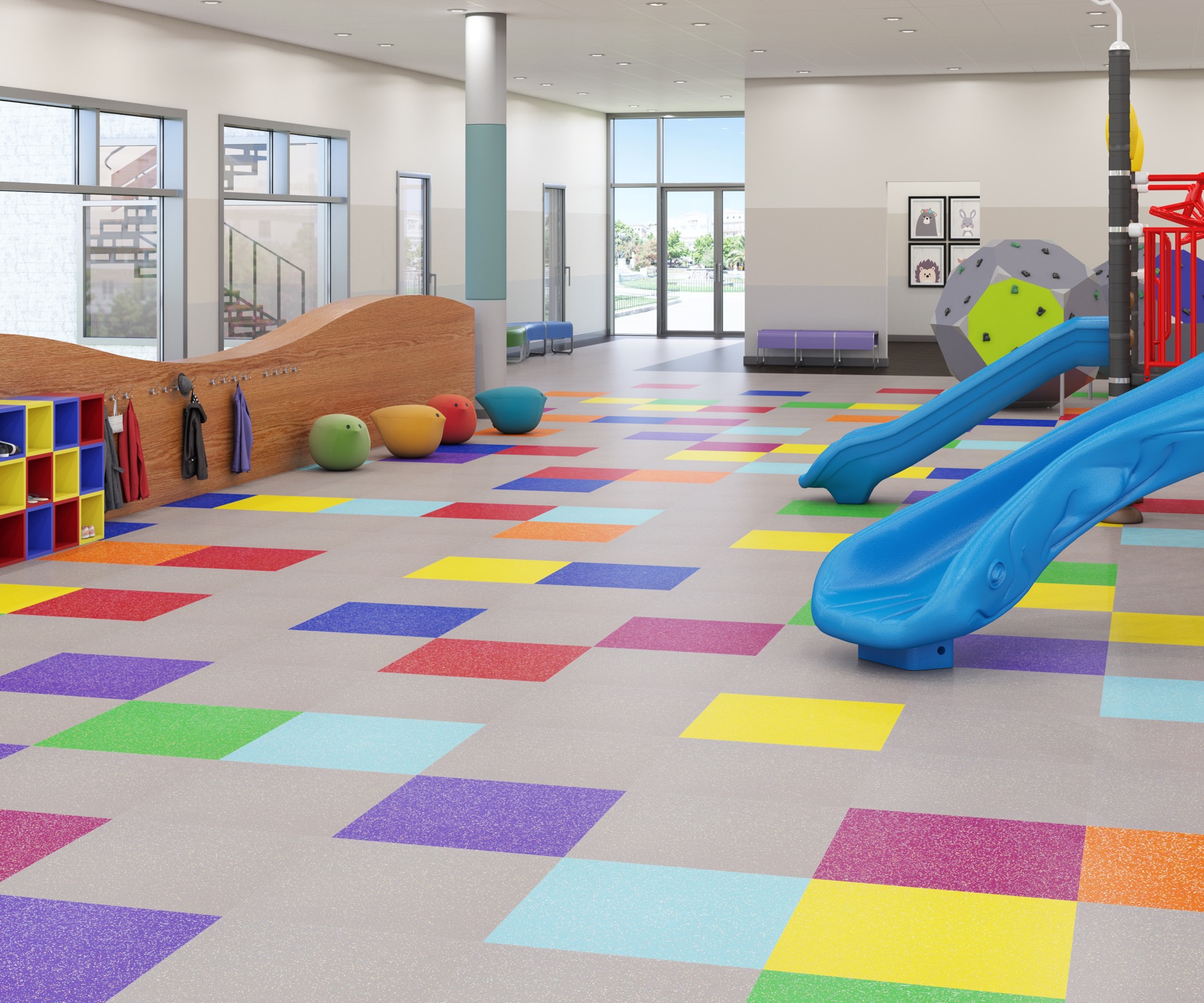

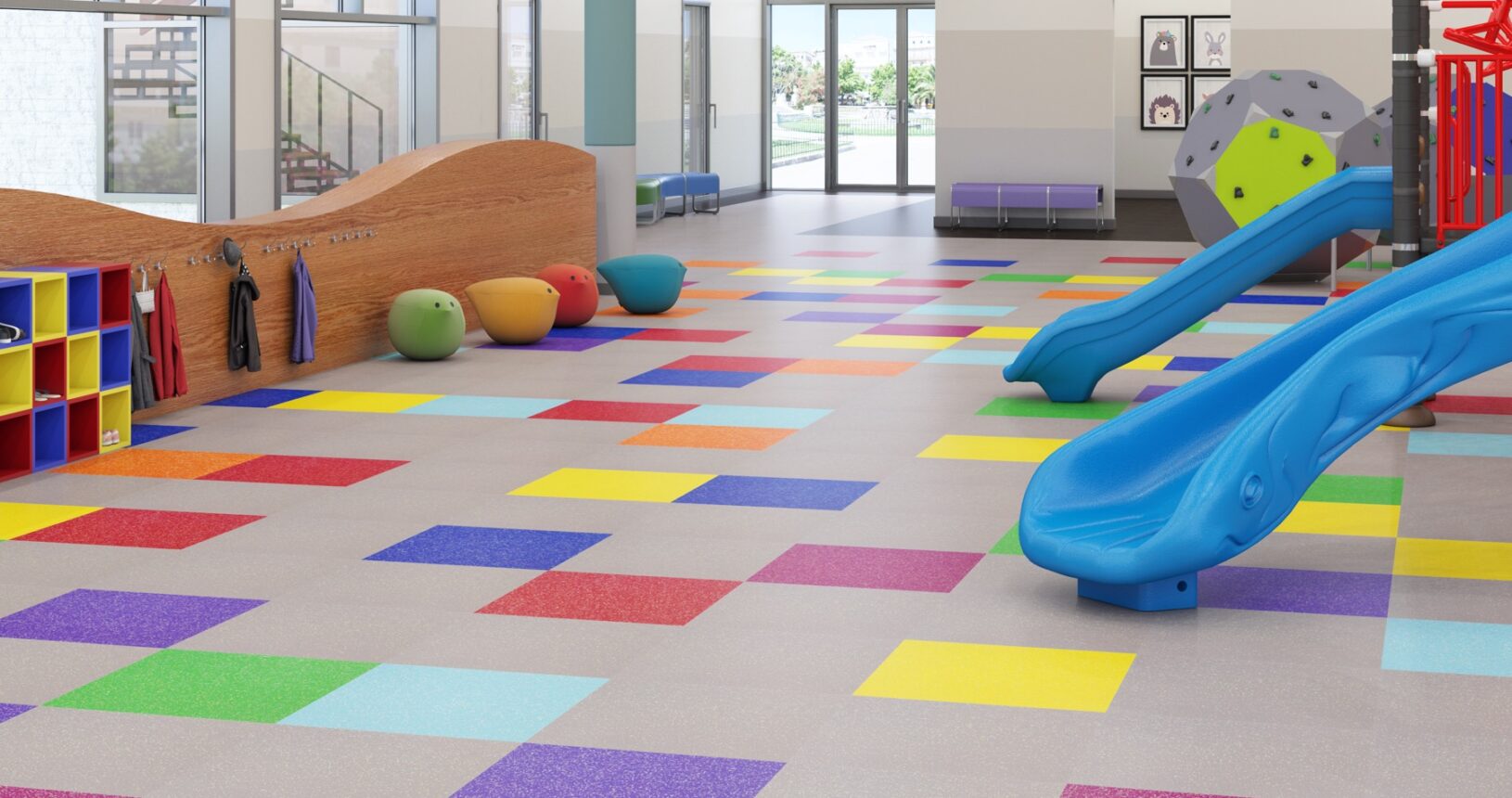

With 12 vibrant colors and a distinctive sparkle, AVA®’s ORBT™ creates fun spaces with reflective speckles that feature a glistening spectrum of color relative to lighting and viewing angle. ORBT™ is ideal for transforming Education, Retail, Hospitality and other commercial spaces into magical environments that radiate with energy and intrigue the imagination.
ORBT™ is available in glue-down 24” x 24” tiles or 6” x 48” planks with a straight edge and 22 mil wear layer. The highly durable patented AMP Advantage coating provides 30% more scratch resistance over typical coatings, making ready for the rigors of busy daycares, play rooms and shopping areas.
| SPECIFICATIONS: | |
|---|---|
| ASTM F1700-13 SOLID VINYL FLOOR TILE: | CLASS III, TYPE B |
| ASTM F137 FLEXIBILITY: | PASSES, 25.4MM MANDREL |
| ASTM F1914 RESIDUAL INDENTATION: | PASSES, <10% |
| ASTM F2199 DIMENSIONAL STABILITY: | PASSES, <0.020 IN. PER LIN. FT. |
| ASTM F925 CHEMICAL RESISTANCE: | PASSES (ASK FOR CHART) |
| WEAR LAYER: | 22 MIL (0.55 MM) |
| OVERALL THICKNESS: | 2.5 MM |
| ASTM F1514 HEAT COLOR STABILITY: | PASSES, < Δ8E |
| SIZE: | 24″ x 24″ TILES, 6″ x 48″ PLANKS |
| ASTM F1515 LIGHT COLOR STABILITY: | PASSES, < Δ8E |
| WARRANTY: | 20 YEAR HEAVY COMMERCIAL | LIFETIME RESIDENTIAL |
| 100% PHTHALATE FREE | REACH COMPLIANT |
| ASTM F970 STATIC LOAD LIMIT: | PASSES, 250 LBS. |
| ASTM F970 MODIFIED FOR MAX WEIGHT: | 1,200 LBS. |
| ASTM E648 (NFPA 253) CRITICAL RADIANT FLUX: | CLASS I, >0.45 W/CM2 |
| ASTM E662 (NFPA 258) SMOKE DENSITY: | PASSES, <450 |
| ASTM D2047 SLIP RESISTANCE: | ASTM D2047 SLIP RESISTANCE: >0.6 (DRY) |

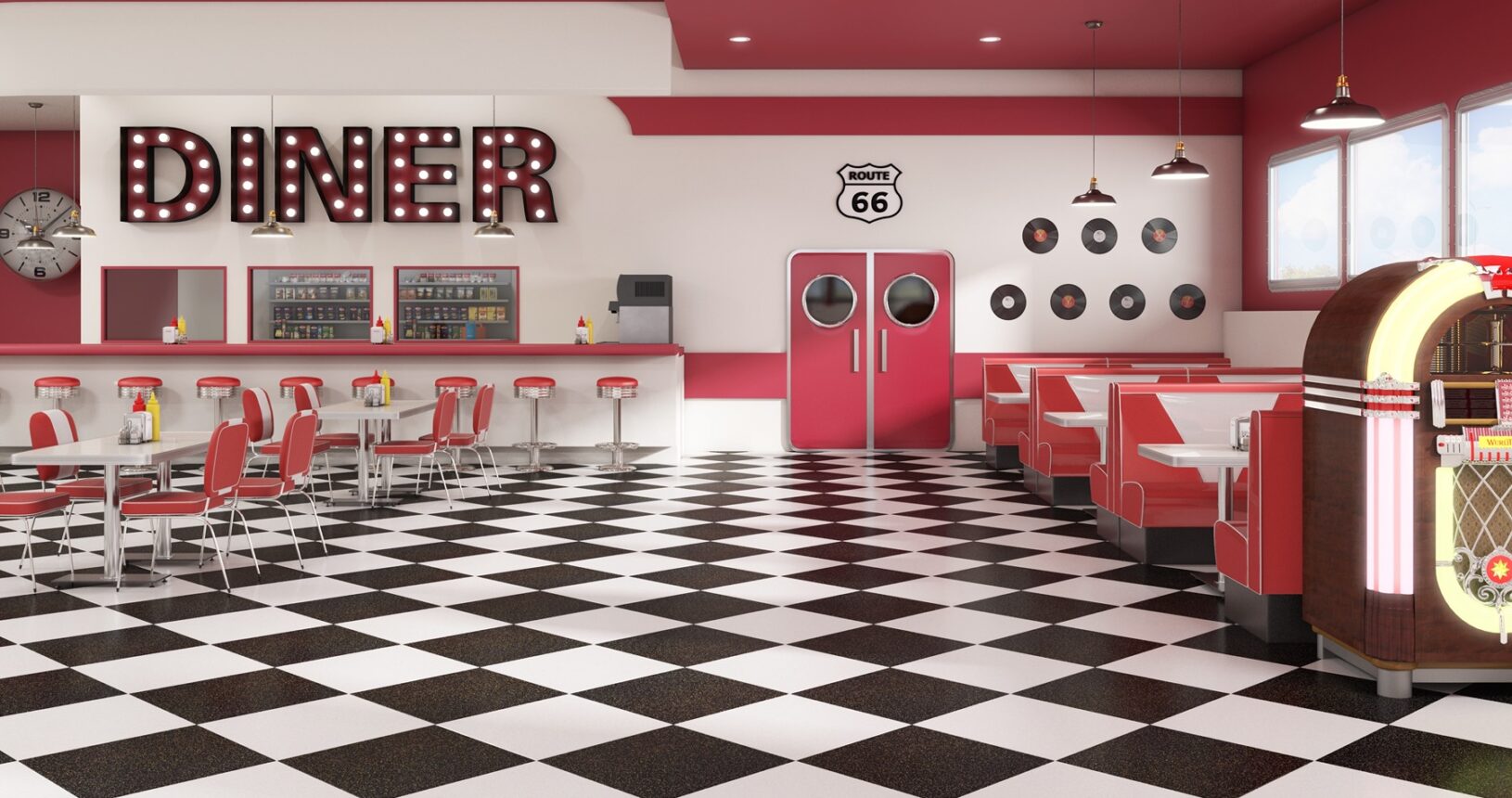

OR001 Black Knight
24″ x 24″
OR001-648 Black Knight Plank
6″ x 48″
OR002 Crushed Ice
24″ x 24″
OR002-648 Crushed Ice Plank
6″ x 48″
OR003 Lemon Twist
24″ x 24″
OR003-648 Lemon Twist Plank
6″ x 48″
OR004 Spicy Sangria
24″ x 24″
OR004-648 Spicy Sangria Plank
6″ x 48″
OR005 Mariner Blue
24″ x 24″
OR005-648 Mariner Blue Plank
6″ x 48″
OR006 Lucky Shamrock
24″ x 24″
OR006-648 Lucky Shamrock Plank
6″ x 48″
OR007 Star Dust
24″ x 24″
OR007-648 Star Dust Plank
6″ x 48″
OR008 Stormy Seas
24″ x 24″
OR008-648 Stormy Seas Plank
6″ x 48″
OR009 Very Berry
24″ x 24″
OR009-648 Very Berry Plank
6″ x 48″
OR010 Purple Bliss
24″ x 24″
OR010-648 Purple Bliss Plank
6″ x 48″
OR011 Knockout Orange
24″ x 24″
OR011-648 Knockout Orange Plank
6″ x 48″
OR012 Blue Tide
24″ x 24″
OR012-648 Blue Tide Plank
6″ x 48″
Color reproduction may vary with your computer or mobile device. For accurate color, please refer to actual product samples in our AVA architect folders or request samples from us.

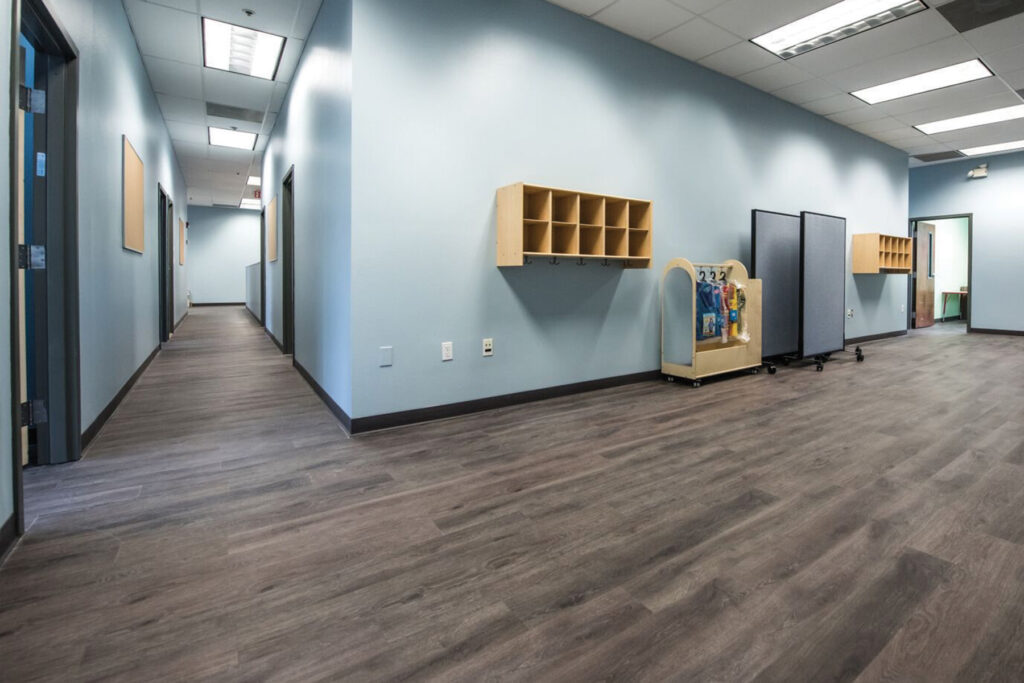

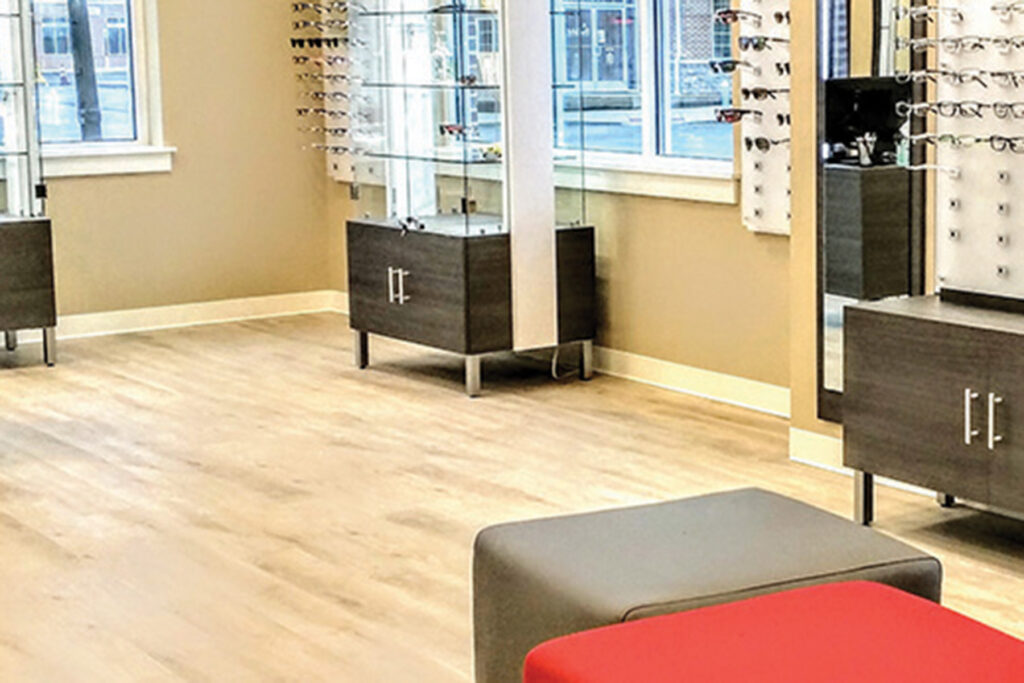

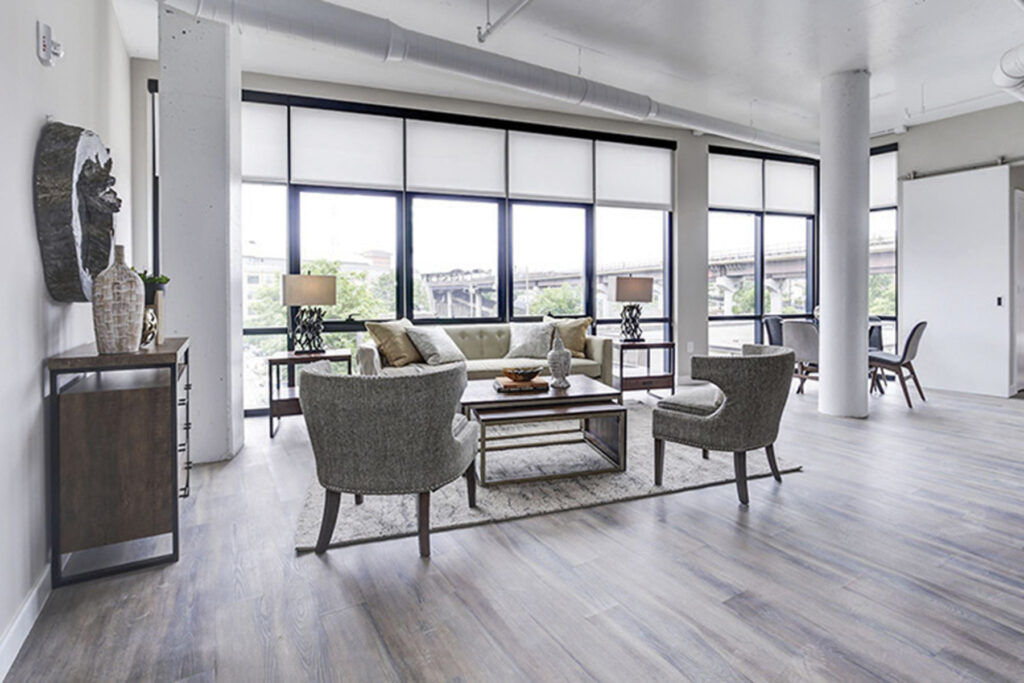

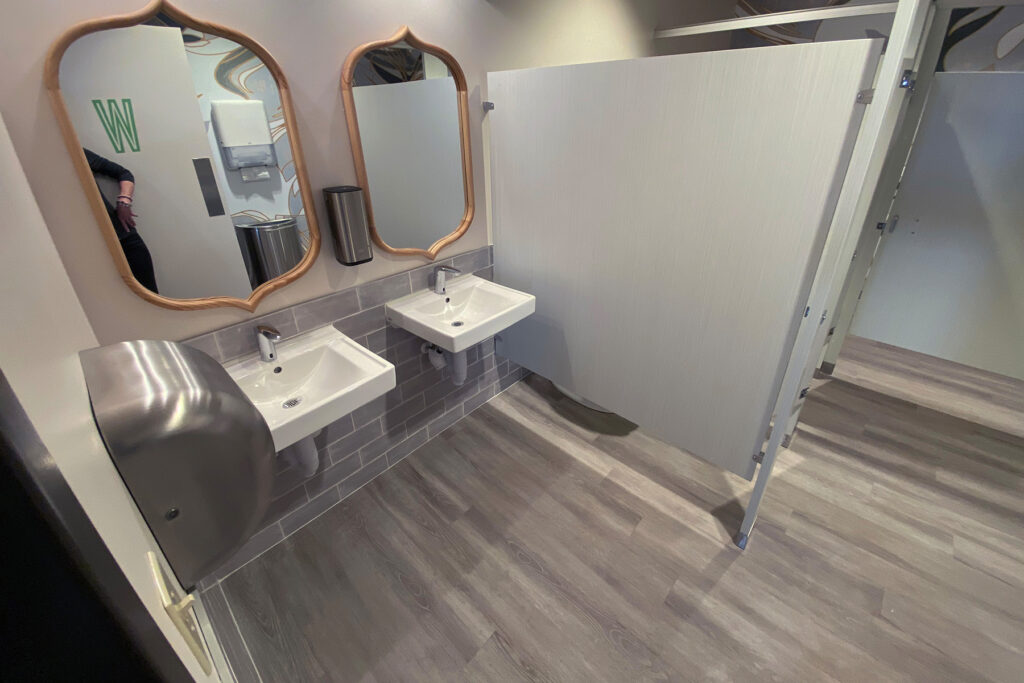

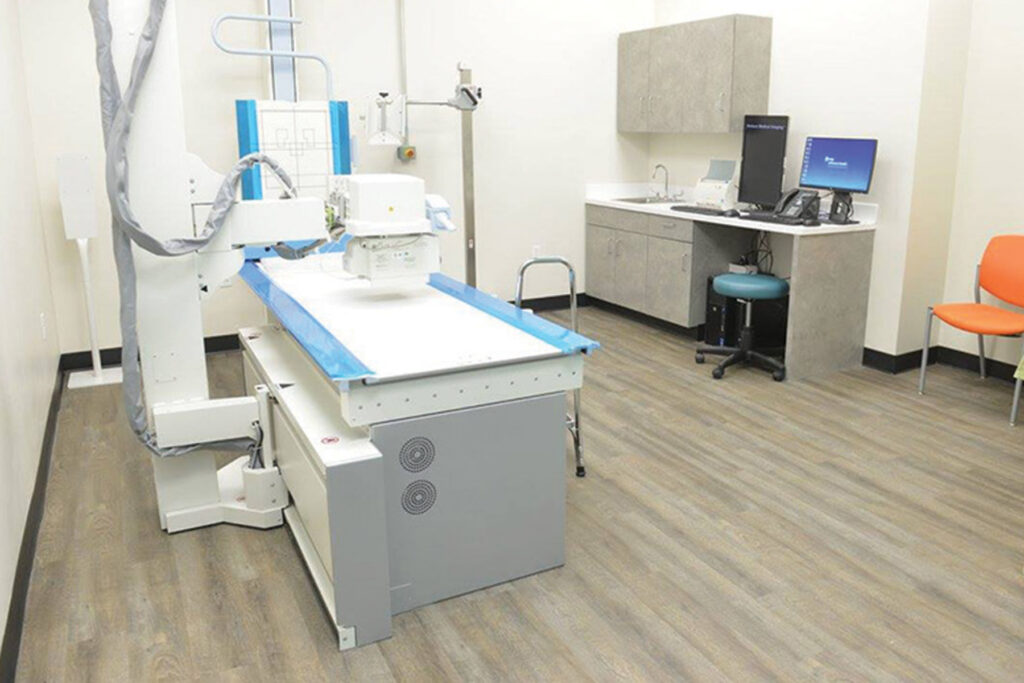

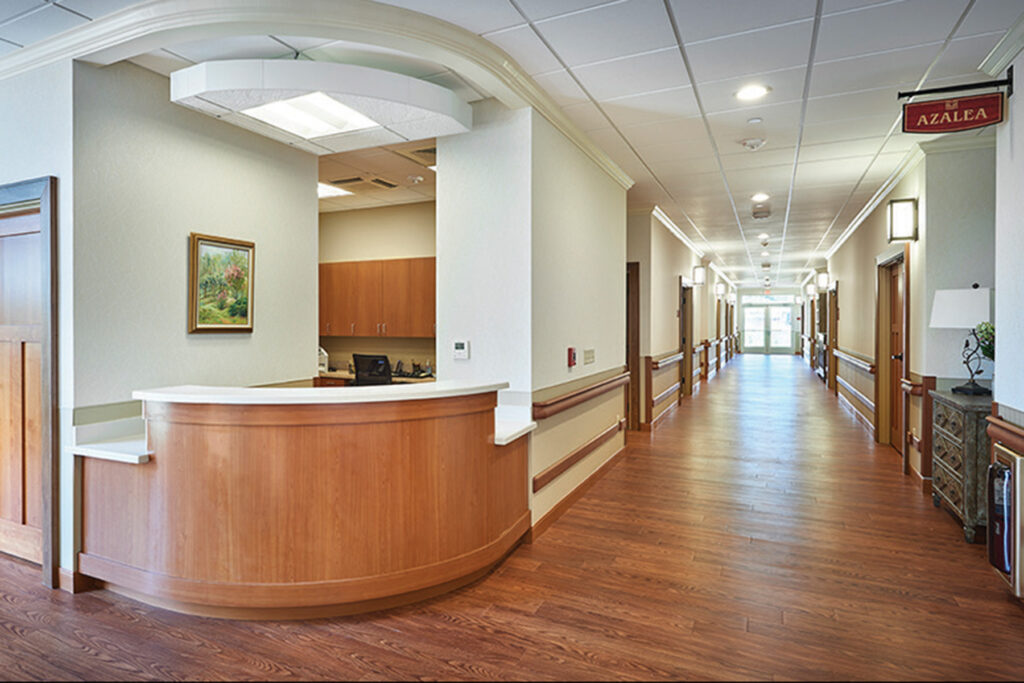

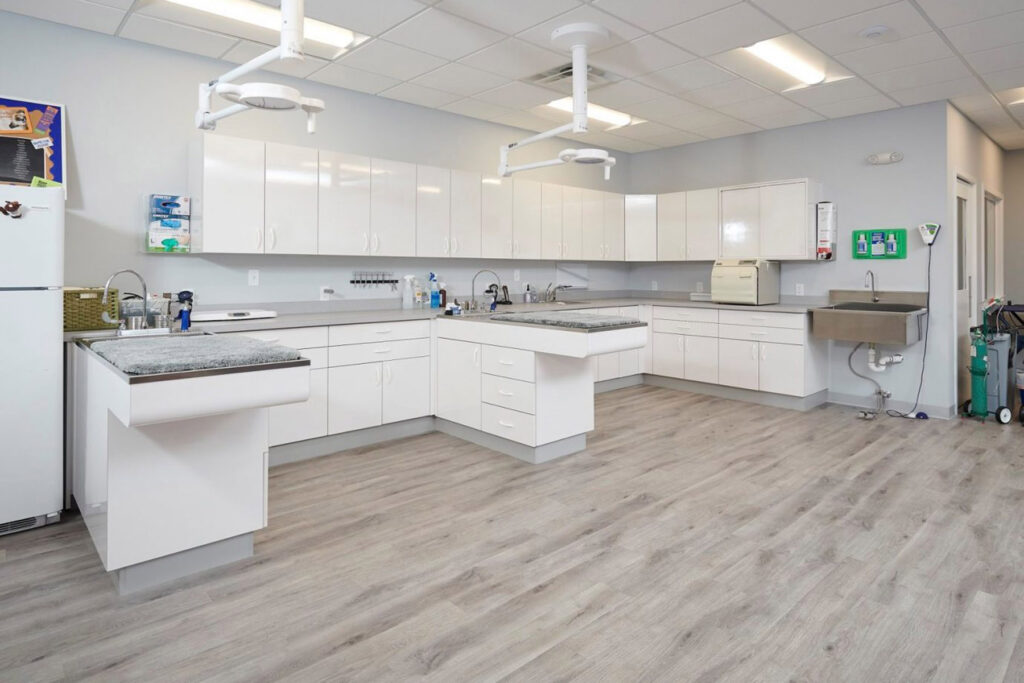

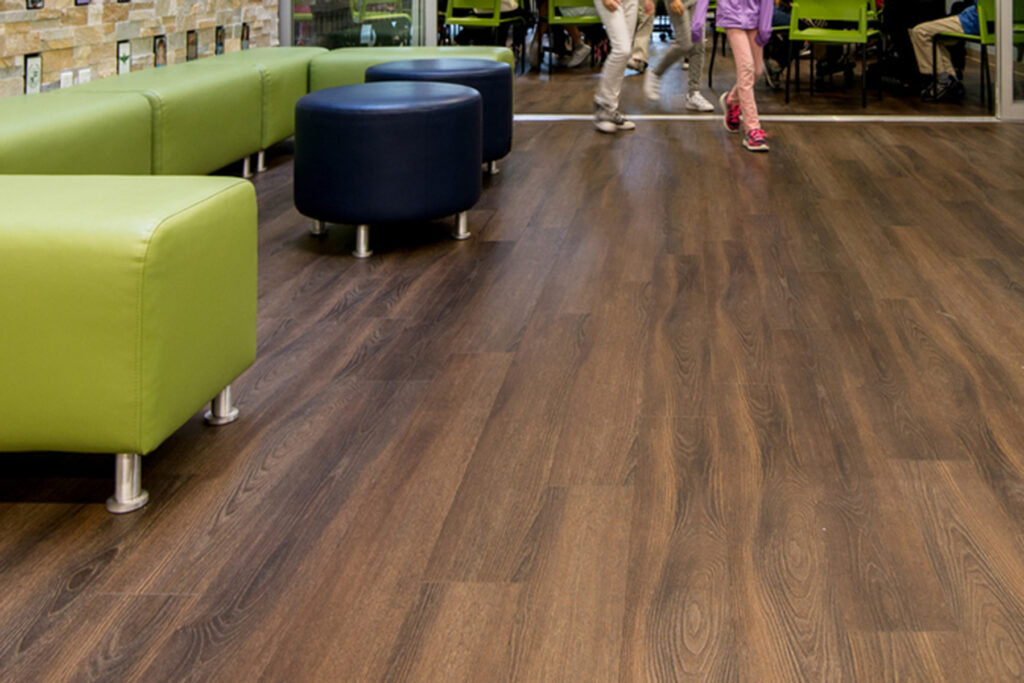

With 24 trendy woods and 8 unique stone designs, the AVA® DSGN® collection is created with the corporate, retail and hospitality sectors in mind.
CLICK TO ENLARGE
Color reproduction may vary with your computer or mobile device. For accurate color, please refer to actual product samples in our AVA architect folders or request samples from us.
All AVA® DSGN® patterns are available in glue down, loose lay and Angle/Angle Clic installation systems. Many AVA® DSGN® patterns in all three installation systems are readily available through our USA quick ship program.
Glue Down: the perfect long term flooring solution for heavy traffic areas including areas with heavy rolling loads. With a variety of applications, the glue down system is used in virtually all commercial sectors.
Loose Lay: simple and easy to install, removable and replaceable, the loose lay construction is the flooring choice for raised access applications as well as fast track and temporary installations.
Angle/Angle Clic Instalation is the latest generation of mechanically locked together vinyl floating flooring. The Angle/Angle Clic system is a simple yet secure fold down locking system. Soft underfoot, less permanent than glue down but a more fixed installation than loose lay, Angle/Angle Clic is the ideal flooring system for many applications.
CLICK TO ENLARGE
| SPECIFICATIONS: | |
|---|---|
| ASTM F1700-13 SOLID VINYL FLOOR TILE: | CLASS III, TYPE B |
| ASTM D2047 STATIC COF FOR POLISHED SURFACES: | EXCEEDS INDUSTRY STANDARDS |
| ASTM F970-07 STATIC LOAD LIMIT: | PASSES (MODIFIED EXCEEDS 1000 LBS PSI) |
| ASTM E648 CRITICAL RADIANT FLUX: | CLASS 1 |
| ASTM E662 SMOKE DENSITY: | PASSES |
| ASTM F925 STAIN & CHEMICAL RESISTANCE: | EXCELLENT |
| WEAR LAYER: | 20 MIL |
| OVERALL THICKNESS GLUE DOWN: | 2.5 MM |
| OVERALL THICKNESS LOOSE LAY: | 5.0 MM |
| OVERALL THICKNESS 5G CLIC: | 5.0 MM |
| WOOD SIZE GLUE DOWN: | 6” X 48” |
| WOOD SIZE LOOSE LAY: | 9” X 48” |
| WOOD SIZE 5G CLIC: | 7” X 48” |
| STONE SIZE GLUE DOWN: | 12” X 24” |
| STONE SIZE LOOSE LAY: | 18” X 36” |
| STONE SIZE 5G CLIC: | 12” X 24” |
| WARRANTY: | 10 YEAR COMMERCIAL WARRANTY |
| 100% PHTHALATE FREE | REACH COMPLIANT |
