2DSGN®
Meticulously designed to look like hardwoods and built to endure heavy traffic, 2DSGN® glue down planks offer soft wood grains and contemporary styles with a balanced palette of 22 colors. The Alpine and Tuscany collections feature registered embossed finishes with microbevel edges while the Peninsula and Weathered collections are straight-edge planks.

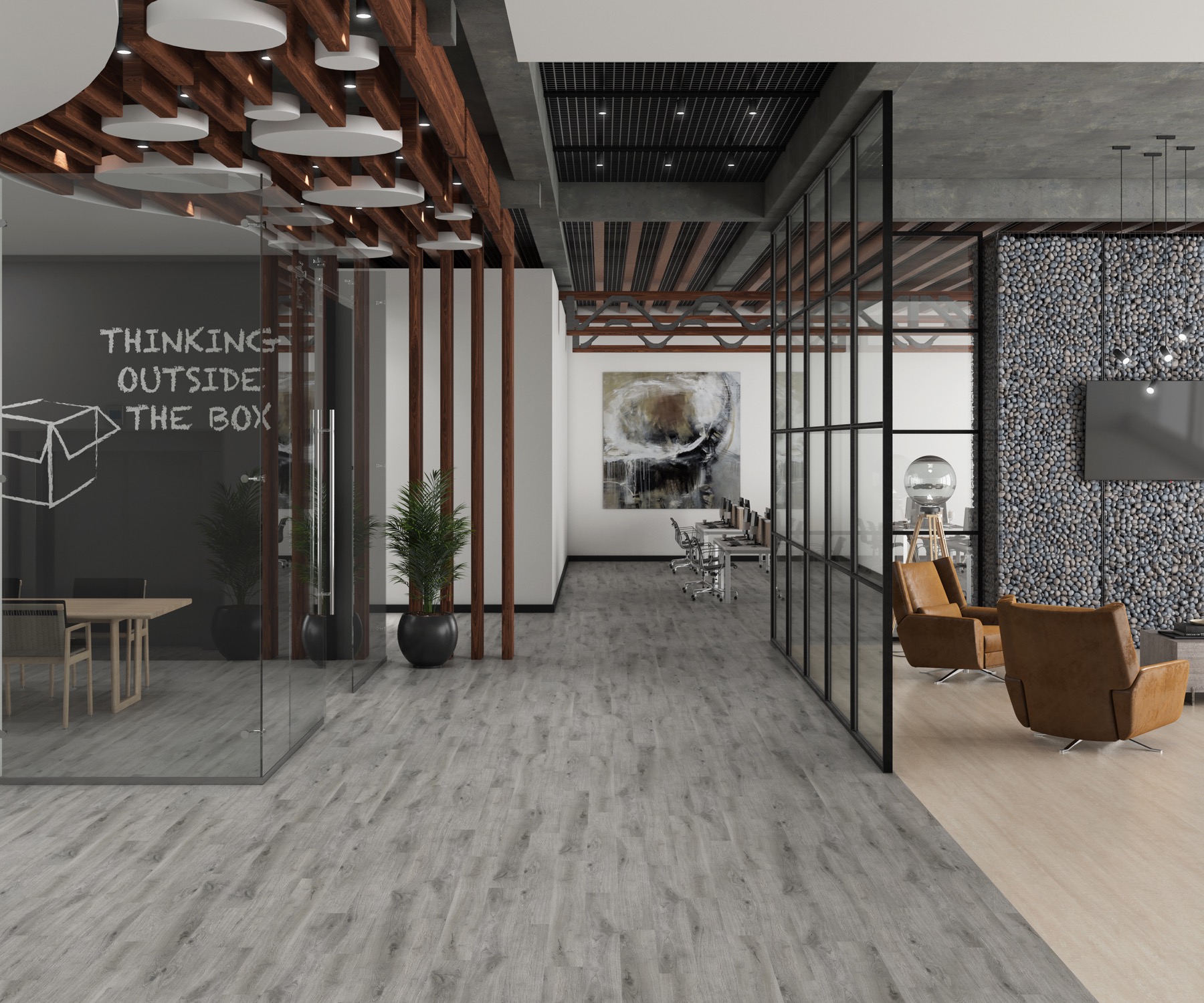

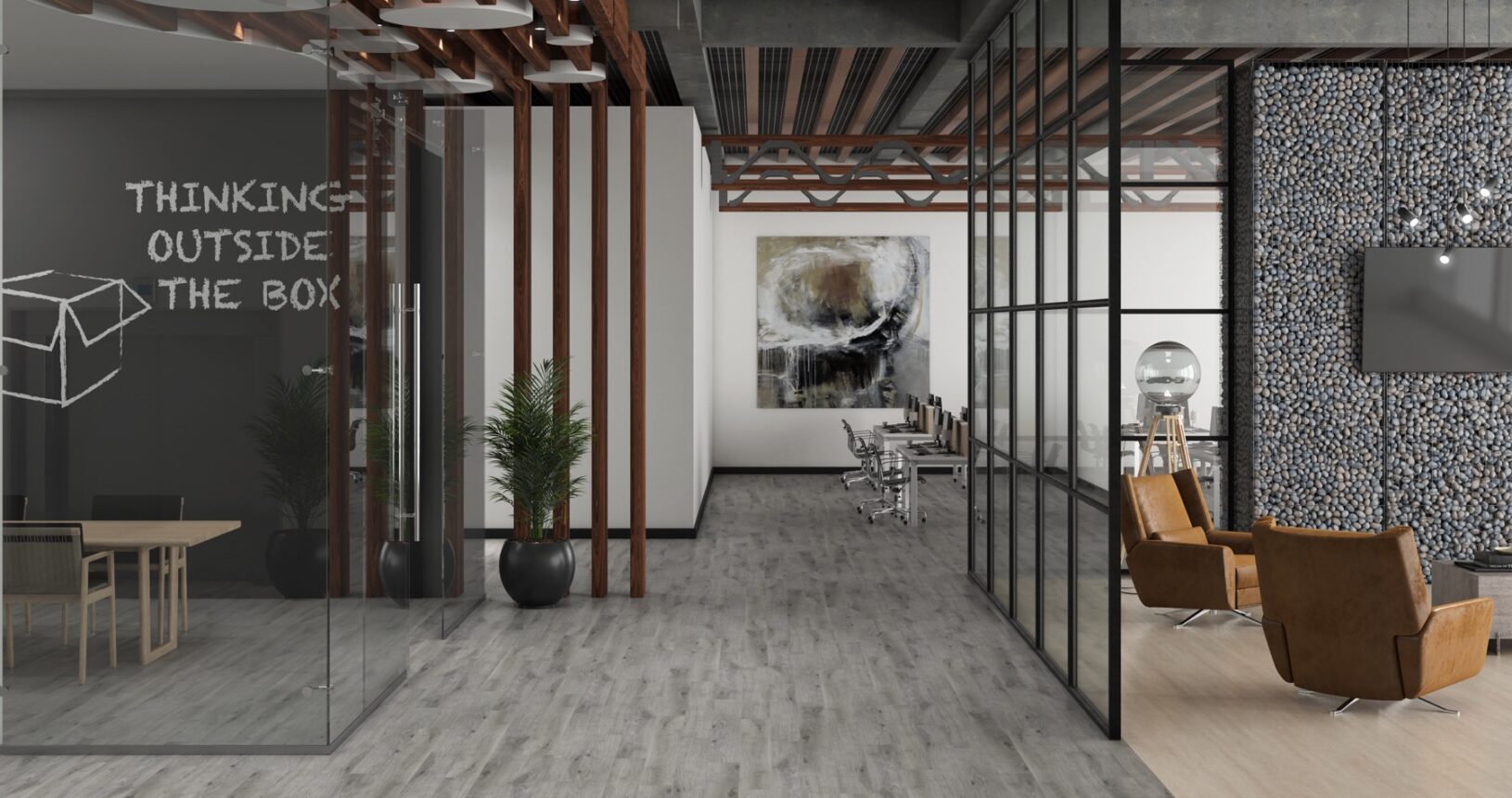

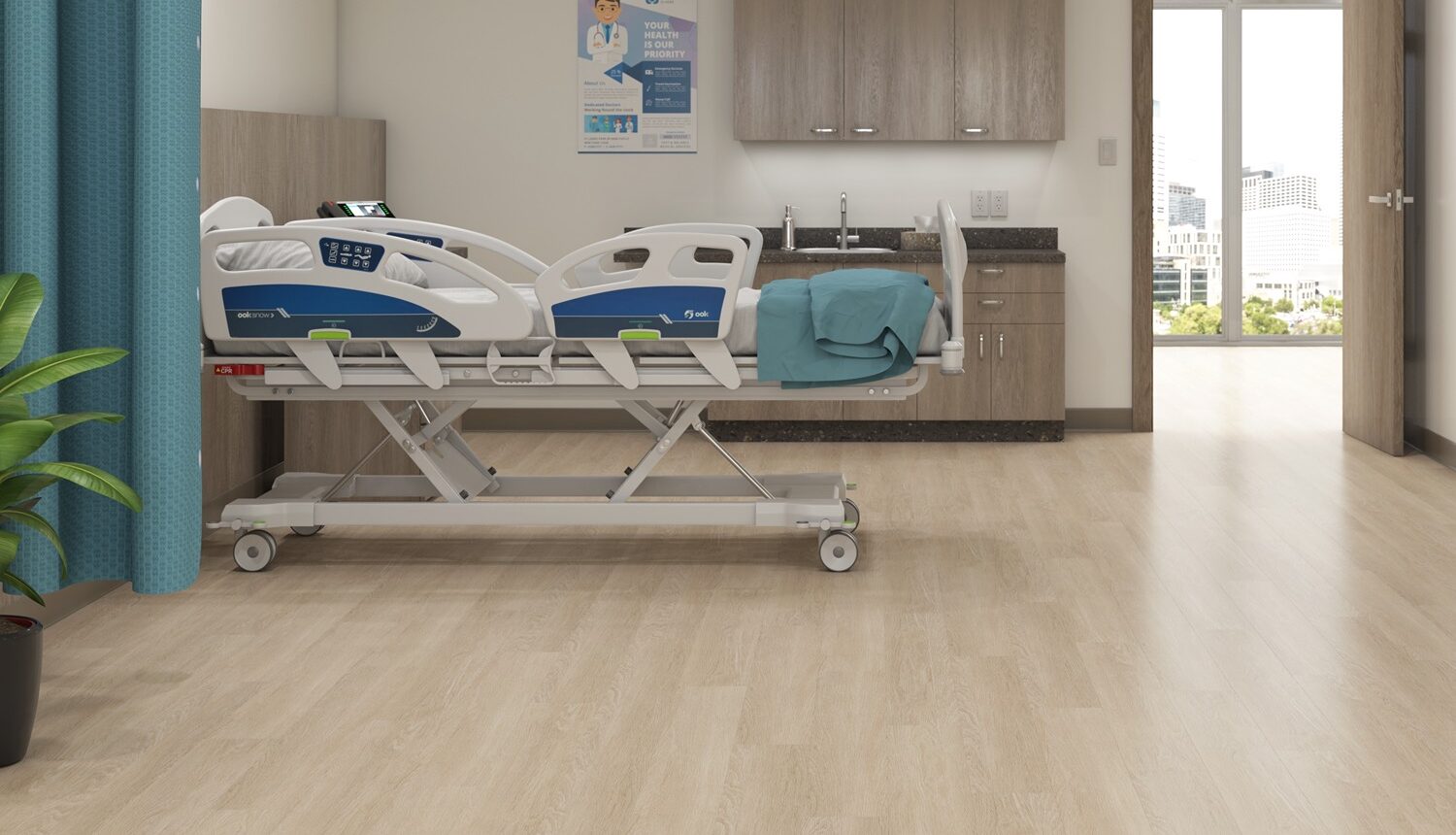

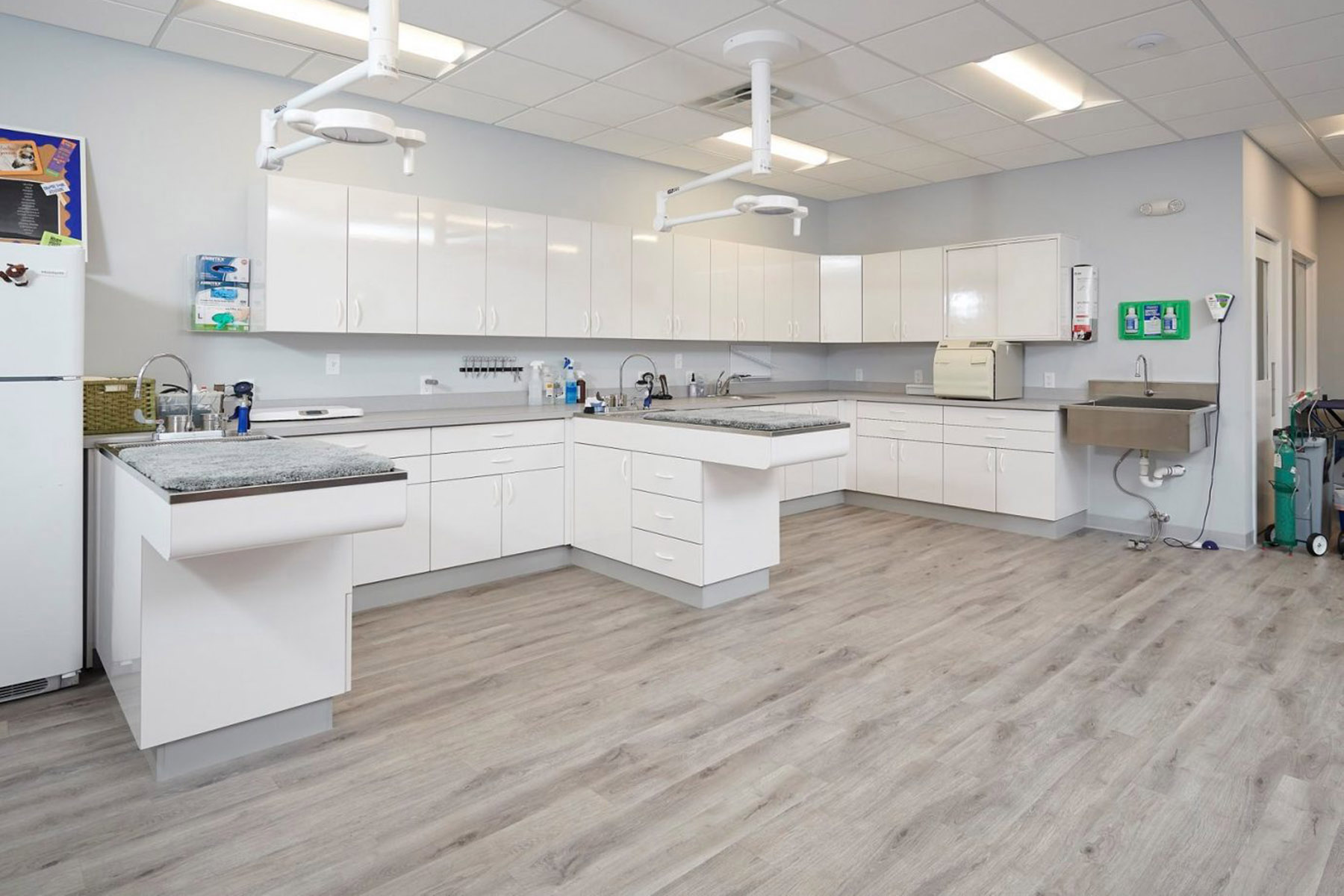

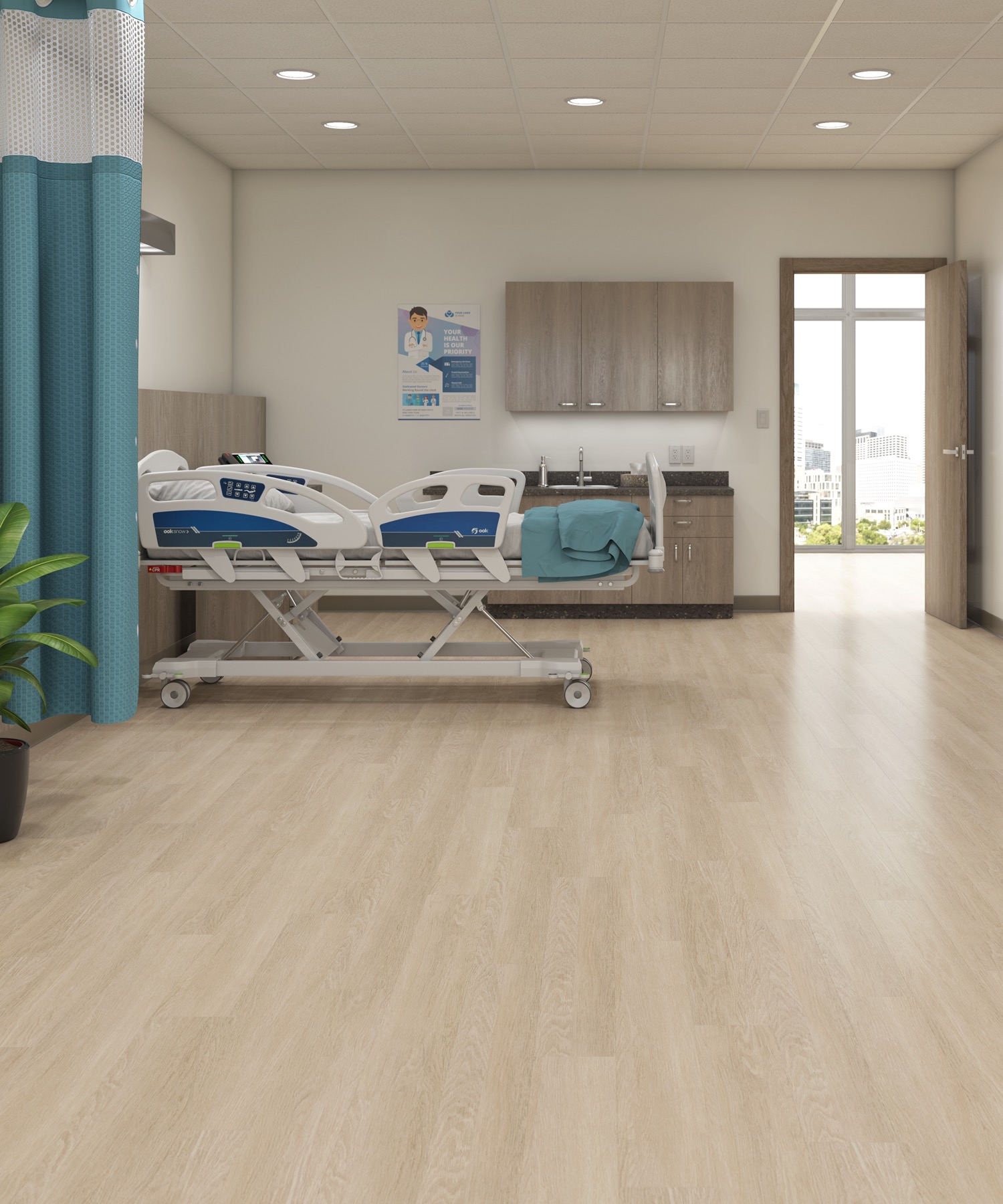

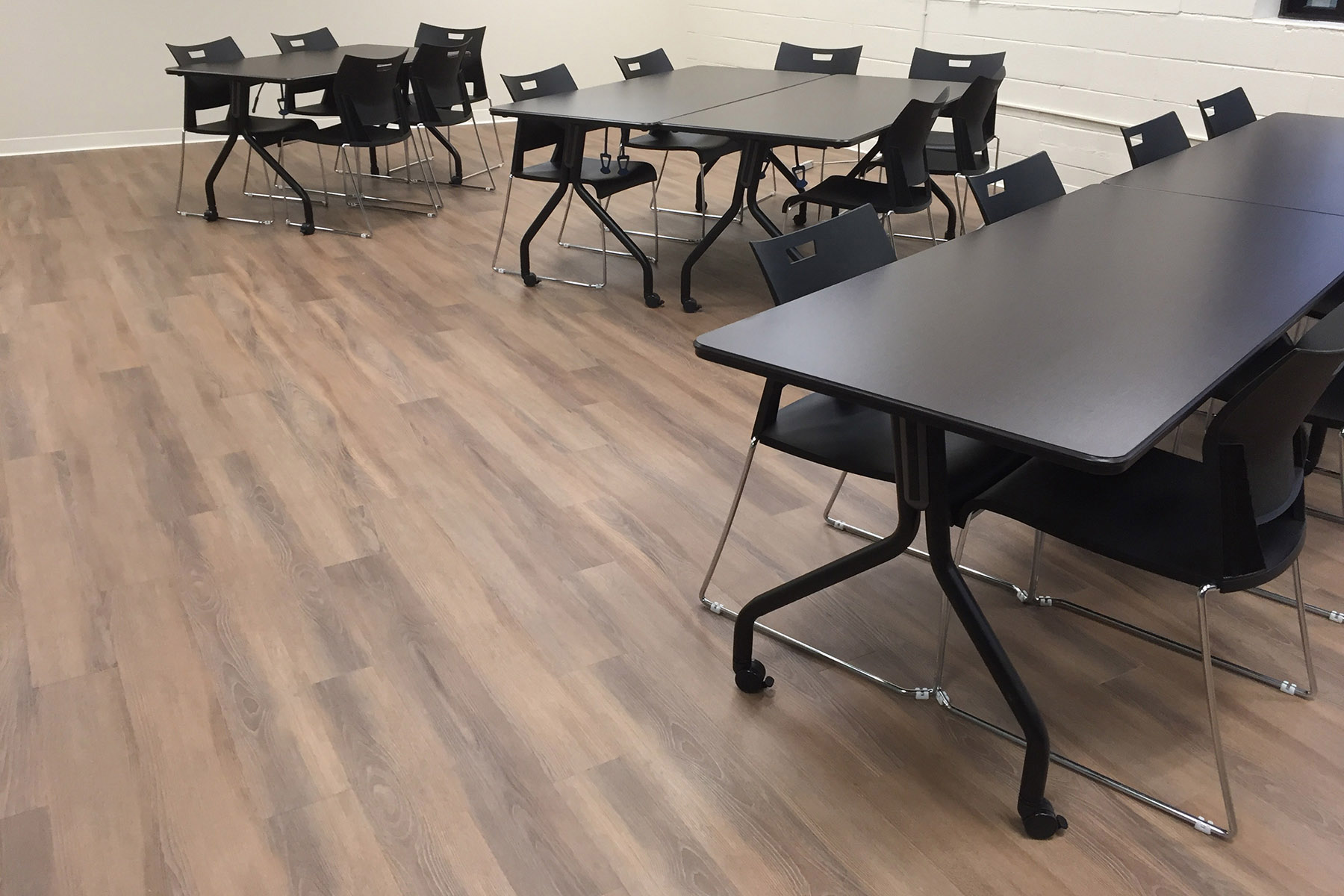

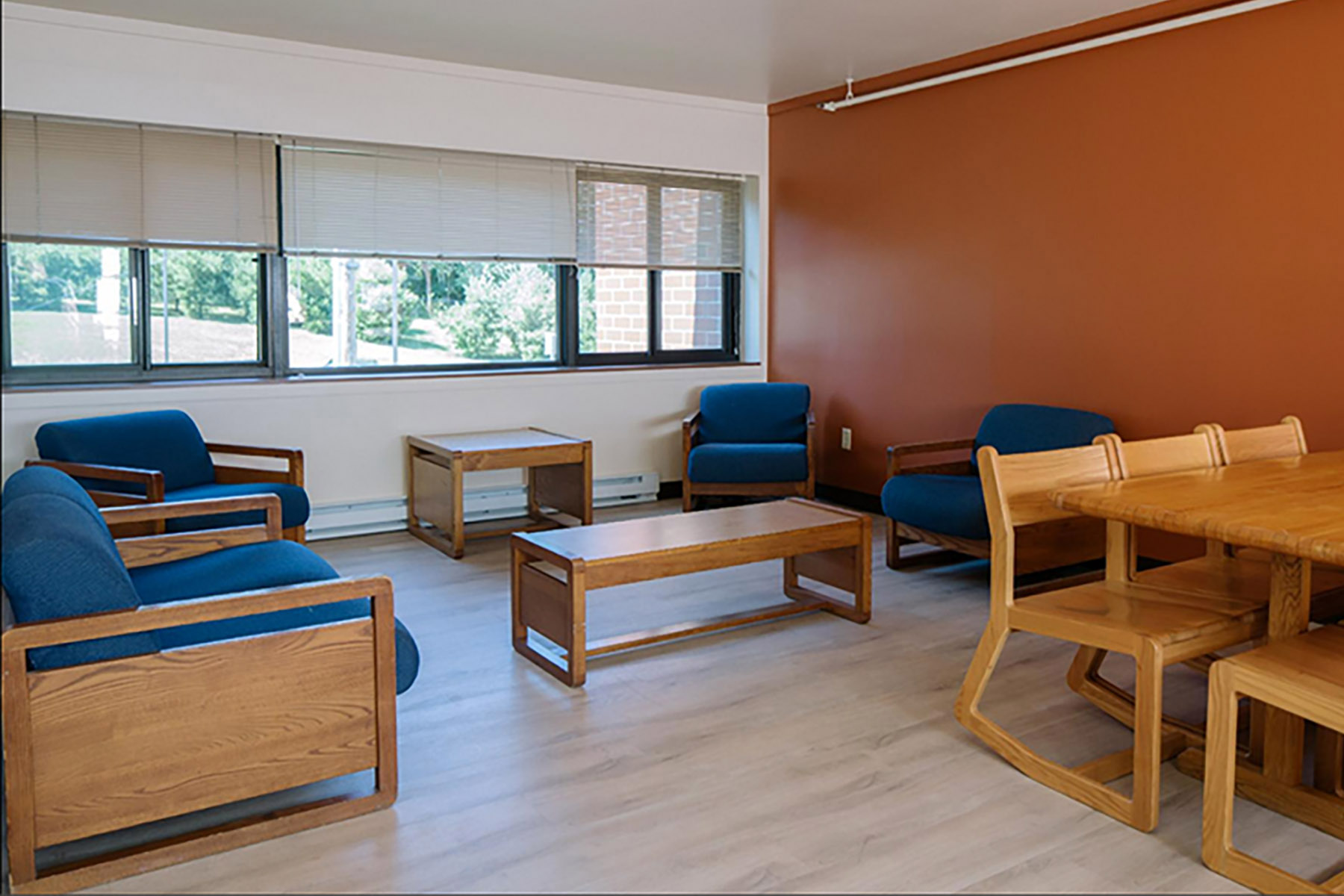

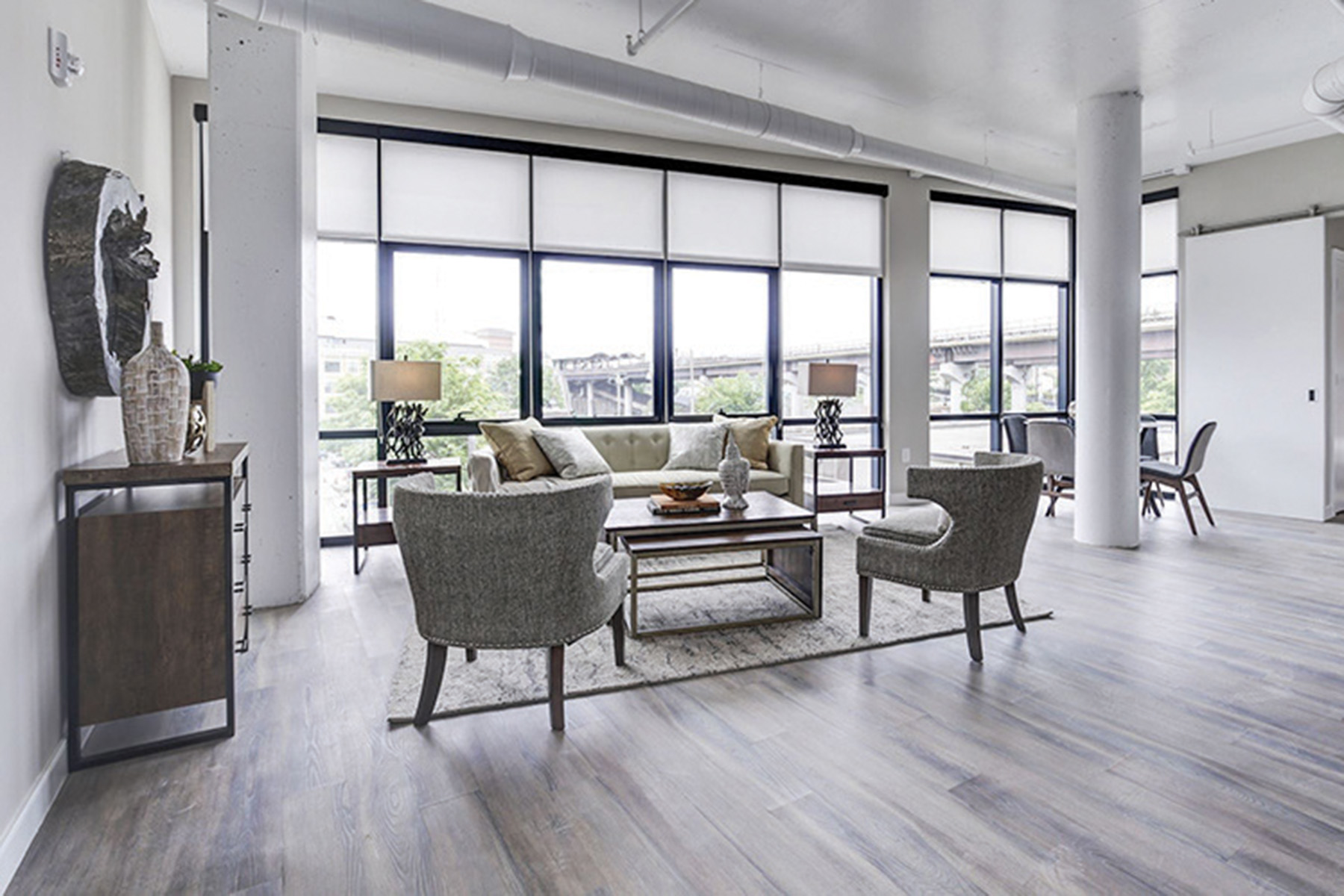

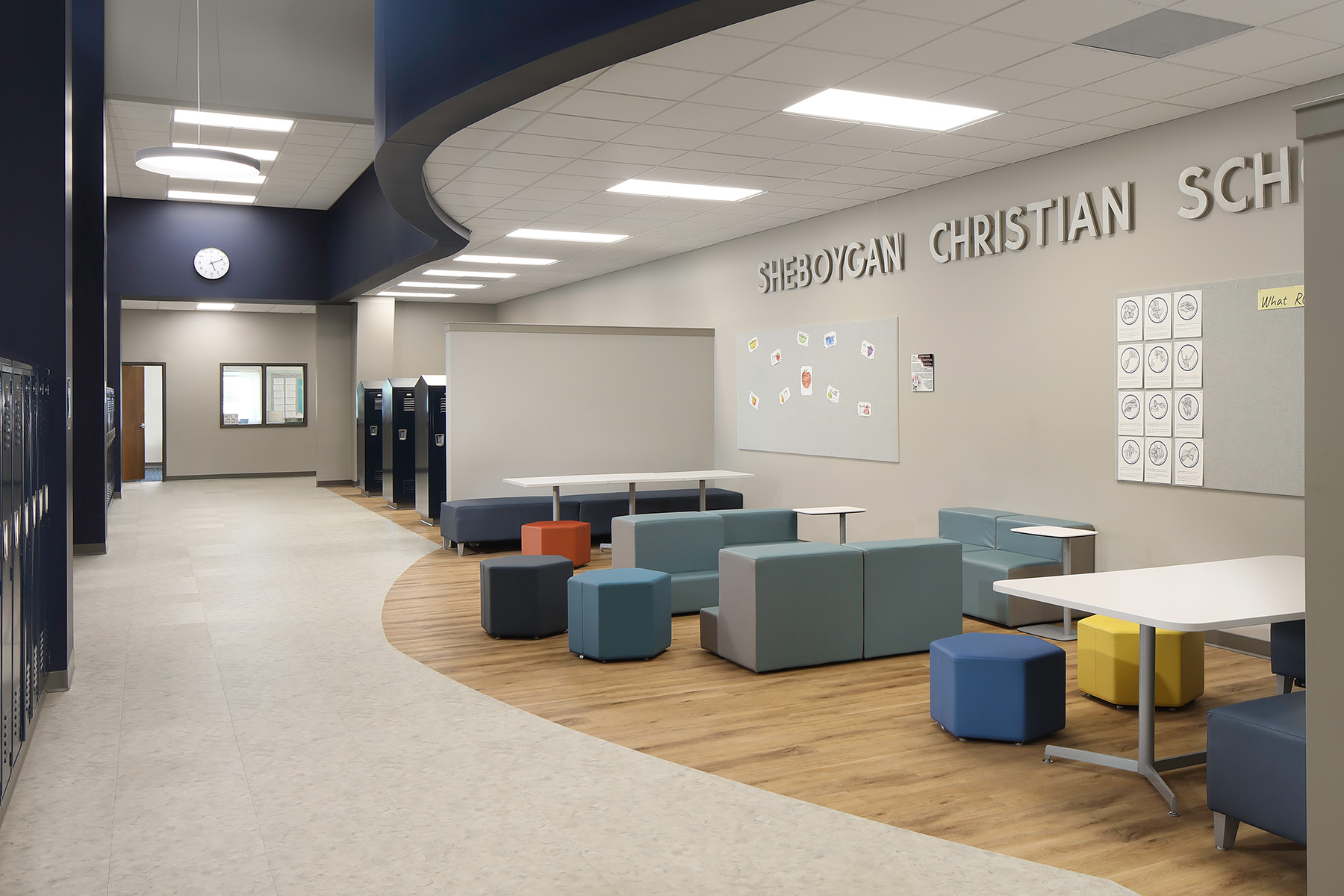

The highly durable patented AMP Advantage finish provides 30% more scratch resistance over typical coatings, making 2DSGN® suitable for high traffic Retail, Healthcare, Education and Corporate environments, as well as Multi-Family settings.
EIR Embossing
The 2DSGN® Tuscany and Alpine palettes have an EIR embossing which stands for Embossed in Register. EIR is a manufacturing method that creates a grain appearance consistent with the look of a real hardwood grain. This process aligns the embossing on the sheet with the printed wood grain design and intensifies the visual impact of the depth, texture and appearance of the floor while still providing durability and ease of maintenance.
| SPECIFICATIONS: | |
|---|---|
| ASTM F1700-13 SOLID VINYL FLOOR TILE: | CLASS III, TYPE B |
| ASTM F137 FLEXIBILITY: | PASSES, 25.4MM MANDREL |
| ASTM F1914 RESIDUAL INDENTATION: | PASSES, <10% |
| ASTM F2199 DIMENSIONAL STABILITY: | PASSES, <0.020 IN. PER LIN. FT. |
| ASTM F925 CHEMICAL RESISTANCE: | PASSES (ASK FOR CHART) |
| WEAR LAYER: | 22 MIL (0.55 MM) |
| OVERALL THICKNESS: | 2.5 MM |
| ASTM F1514 HEAT COLOR STABILITY: | PASSES, < Δ8E |
| SIZE: | 6” X 48” |
| ASTM F1515 LIGHT COLOR STABILITY: | PASSES, < Δ8E |
| WARRANTY: | 20 YEAR HEAVY COMMERCIAL | LIFETIME RESIDENTIAL |
| 100% PHTHALATE FREE | REACH COMPLIANT |
| ASTM F970 STATIC LOAD LIMIT: | PASSES, 250 LBS. |
| ASTM F970 MODIFIED FOR MAX WEIGHT: | 1,200 LBS. |
| ASTM E648 (NFPA 253) CRITICAL RADIANT FLUX: | CLASS I, >0.45 W/CM2 |
| ASTM E662 (NFPA 258) SMOKE DENSITY: | PASSES, <450 |
| ASTM D2047 SLIP RESISTANCE: | ASTM D2047 SLIP RESISTANCE: >0.6 (DRY) |
PO2D001 – Peninsula Oak Summit
6″x48″ | Straight Edge
PO2D002 – Peninsula Oak Canyon
6″x48″ | Straight Edge
PO2D003 – Peninsula Oak Plateau
6″x48″ | Straight Edge
PO2D004 – Peninsula Oak Plains
6″x48″ | Straight Edge
PO2D005 – Peninsula Oak Timber
6″x48″ | Straight Edge
PO2D006 – Peninsula Oak Panhandle
6″x48″ | Straight Edge
AO2D002 – Alpine Oak Fog
6″x48″ | Microbevel Edge / Embossed in Register
AO2D005 – Alpine Oak Khaki
6″x48″ | Microbevel Edge / Embossed in Register
AO2D007 – Alpine Oak Syrup
6″x48″ | Microbevel Edge / Embossed in Register
AO2D008 – Alpine Oak Prestige
6″x48″ | Microbevel Edge / Embossed in Register
AO2D003 – Alpine Oak Aurora
6″x48″ | Microbevel Edge / Embossed in Register
AO2D009 – Alpine Oak Anchor
6″x48″ | Microbevel Edge / Embossed in Register
SO2D001 – Weathered Oak Tavern
6″x48″ | Straight Edge
SO2D002 – Weathered Oak Latte
6″x48″ | Straight Edge
SO2D003 – Weathered Oak Kona
6″x48″ | Straight Edge
SO2D004 – Weathered Oak Parchment
6″x48″ | Straight Edge
TO2D007 – Tuscany Oak Carafe
6″x48″ | Microbevel Edge / Embossed in Register
TO2D005 – Tuscany Oak Steel
6″x48″ | Microbevel Edge / Embossed in Register
TO2D008 – Tuscany Oak Peanut
6″x48″ | Microbevel Edge / Embossed in Register
TO2D002 – Tuscany Oak Mist
6″x48″ | Microbevel Edge / Embossed in Register
TO2D001 – Tuscany Oak Snow
6″x48″ | Microbevel Edge / Embossed in Register
TO2D009 – Tuscany Oak Medallion
6″x48″ | Microbevel Edge / Embossed in Register
Color reproduction may vary with your computer or mobile device. For accurate color, please refer to actual product samples in our AVA architect folders or request samples from us.

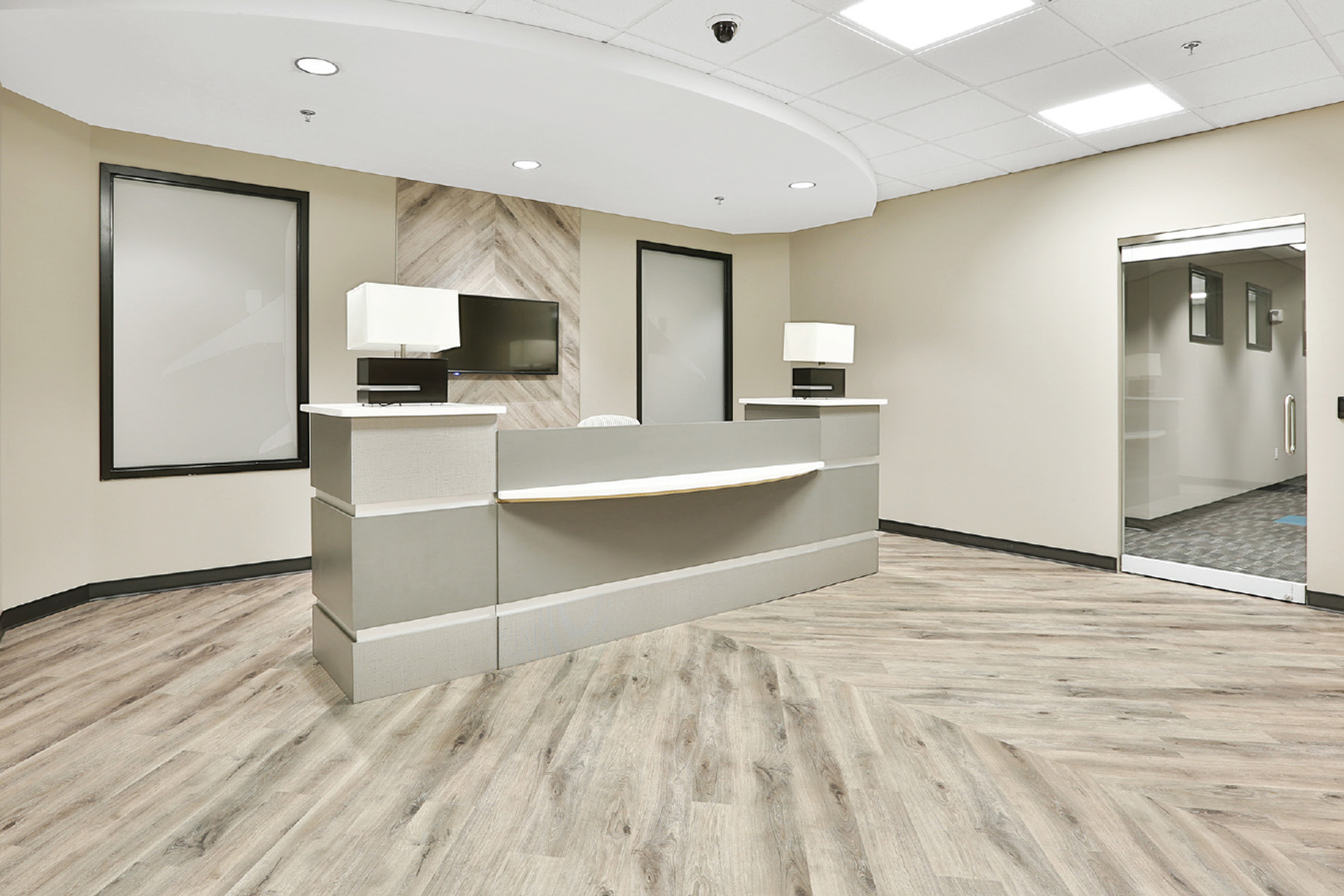

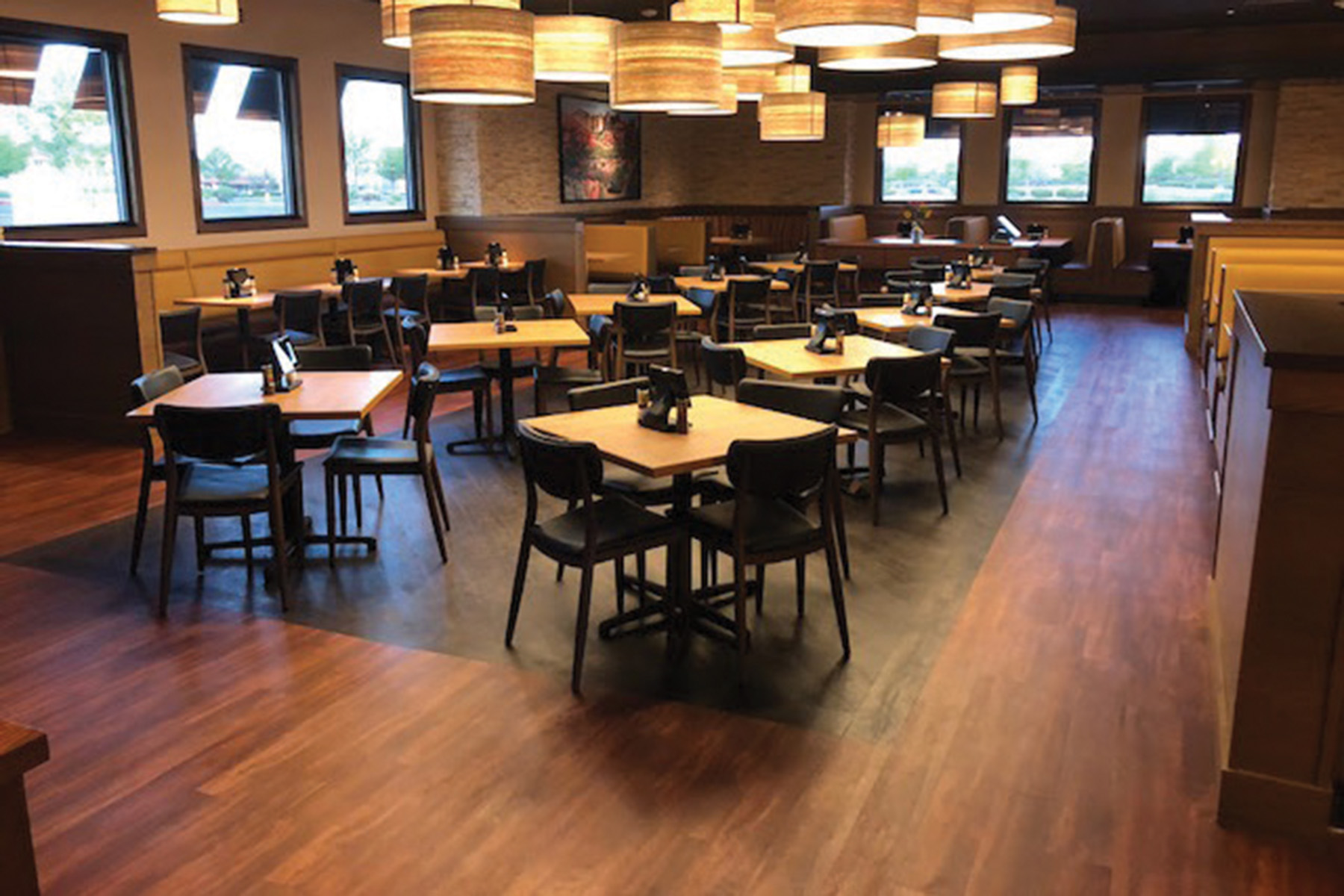

With 24 trendy woods and 8 unique stone designs, the AVA® DSGN® collection is created with the corporate, retail and hospitality sectors in mind.
CLICK TO ENLARGE
Color reproduction may vary with your computer or mobile device. For accurate color, please refer to actual product samples in our AVA architect folders or request samples from us.
All AVA® DSGN® patterns are available in glue down, loose lay and Angle/Angle Clic installation systems. Many AVA® DSGN® patterns in all three installation systems are readily available through our USA quick ship program.
Glue Down: the perfect long term flooring solution for heavy traffic areas including areas with heavy rolling loads. With a variety of applications, the glue down system is used in virtually all commercial sectors.
Loose Lay: simple and easy to install, removable and replaceable, the loose lay construction is the flooring choice for raised access applications as well as fast track and temporary installations.
Angle/Angle Clic Instalation is the latest generation of mechanically locked together vinyl floating flooring. The Angle/Angle Clic system is a simple yet secure fold down locking system. Soft underfoot, less permanent than glue down but a more fixed installation than loose lay, Angle/Angle Clic is the ideal flooring system for many applications.
CLICK TO ENLARGE
| SPECIFICATIONS: | |
|---|---|
| ASTM F1700-13 SOLID VINYL FLOOR TILE: | CLASS III, TYPE B |
| ASTM D2047 STATIC COF FOR POLISHED SURFACES: | EXCEEDS INDUSTRY STANDARDS |
| ASTM F970-07 STATIC LOAD LIMIT: | PASSES (MODIFIED EXCEEDS 1000 LBS PSI) |
| ASTM E648 CRITICAL RADIANT FLUX: | CLASS 1 |
| ASTM E662 SMOKE DENSITY: | PASSES |
| ASTM F925 STAIN & CHEMICAL RESISTANCE: | EXCELLENT |
| WEAR LAYER: | 20 MIL |
| OVERALL THICKNESS GLUE DOWN: | 2.5 MM |
| OVERALL THICKNESS LOOSE LAY: | 5.0 MM |
| OVERALL THICKNESS 5G CLIC: | 5.0 MM |
| WOOD SIZE GLUE DOWN: | 6” X 48” |
| WOOD SIZE LOOSE LAY: | 9” X 48” |
| WOOD SIZE 5G CLIC: | 7” X 48” |
| STONE SIZE GLUE DOWN: | 12” X 24” |
| STONE SIZE LOOSE LAY: | 18” X 36” |
| STONE SIZE 5G CLIC: | 12” X 24” |
| WARRANTY: | 10 YEAR COMMERCIAL WARRANTY |
| 100% PHTHALATE FREE | REACH COMPLIANT |
