RYSE - AVA Flooring

With 10 popular wood looks and realistic embossed surface, AVA® RYSE® provides superior beauty and performance in 6” x 48” glue-down planks with a straight edge. AVA®’s proprietary AMP Advantage coating makes RYSE® the perfect solution for your heavy traffic areas, including areas with heavy rolling loads. RYSE® is the ideal flooring for Corporate offices, Retail spaces, Hospitality and a variety of other commercial environments.

Size

6” x 48”
(152 mm x 1219 mm)

Thickness / WL

2.0 mm /
12 mil (0.30 mm)

Thickness / WL

2.5 mm
22 mil (0.55 mm)

Warranty

20-Year Heavy Commercial (22 mil), 10-Year Heavy Commercial (12 mil) & Lifetime Residential

Size

6” x 48”
(152 mm x 1219 mm)

Overall Thickness

5.0 mm

Wear Layer

22 mil (0.55 mm)

Warranty

20-Year Commercial & Lifetime Residential

RYSE Colors – 6" x 48"

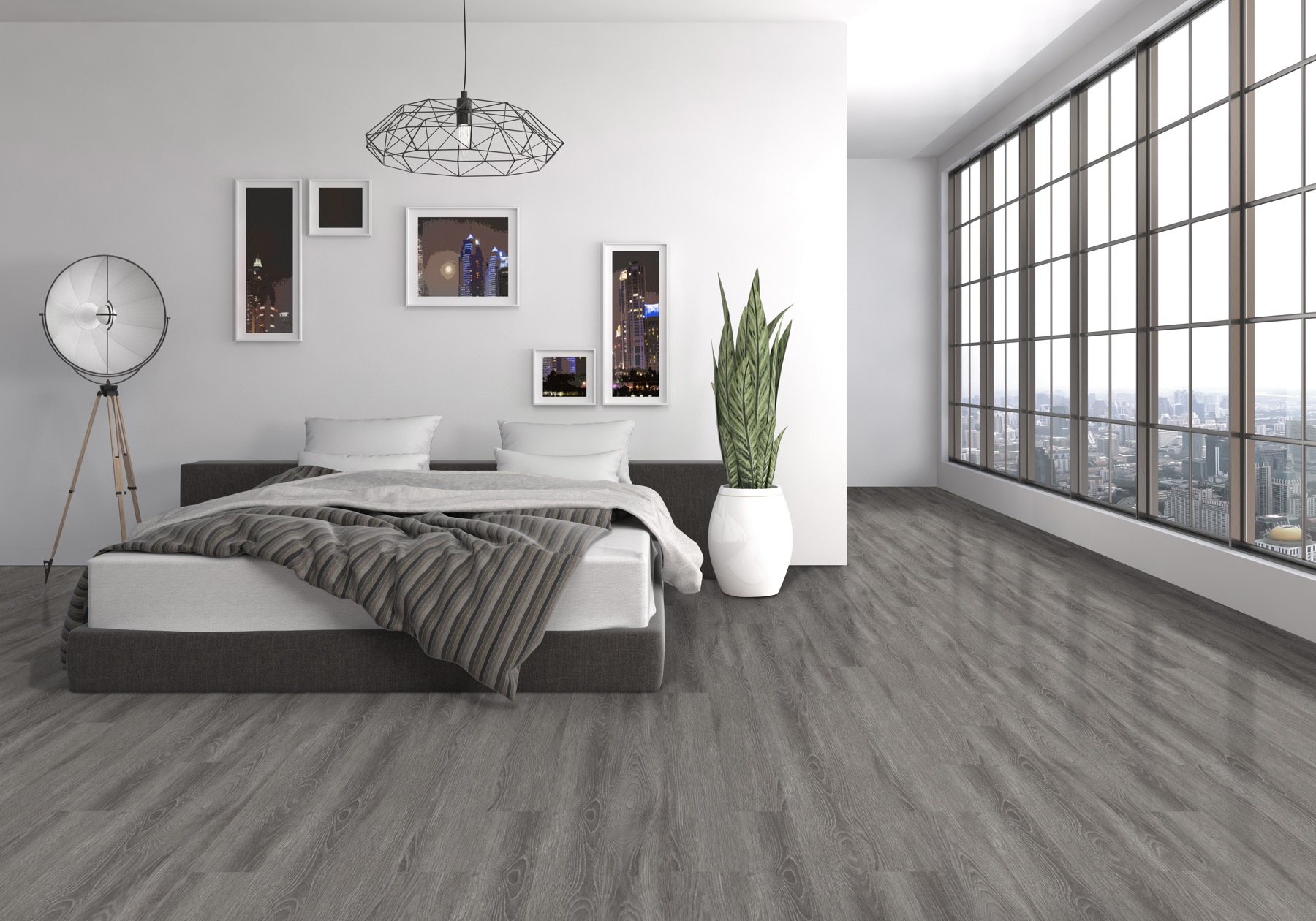

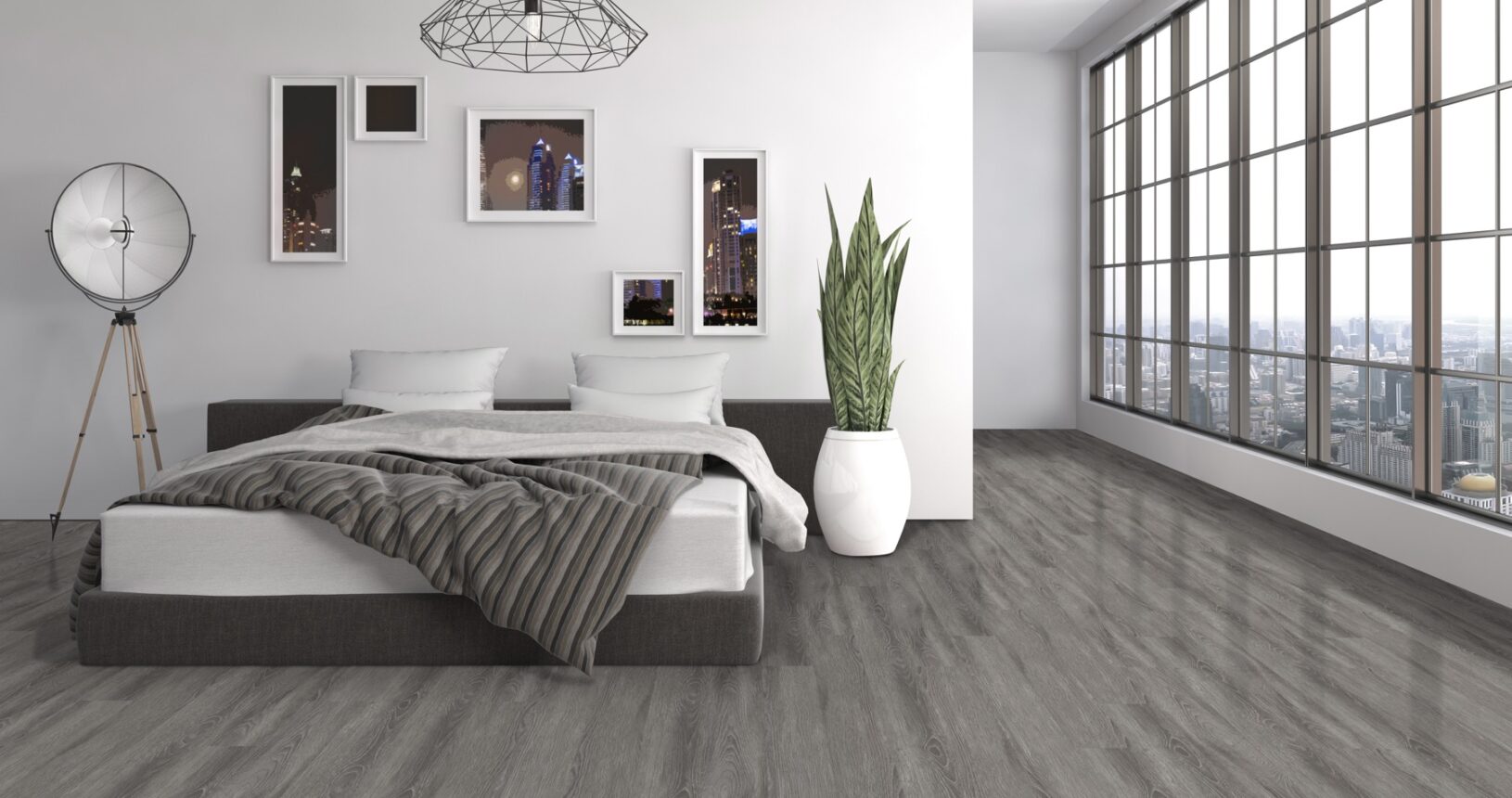

: Alpine Oak Anchor
2.0 mm: AO009-203K / 2.5 mm: AO009-2555K / 5.0 mm: AO009L-K

: Alpine Oak Khaki
2.0 mm: AO005-203K / 2.5 mm: AO005-2555K / 5.0 mm: AO005L-K

: Baltic Oak Suede
2.0 mm: BO003-203K / 2.5 mm: BO003-2555K / 5.0 mm: BO003L-K

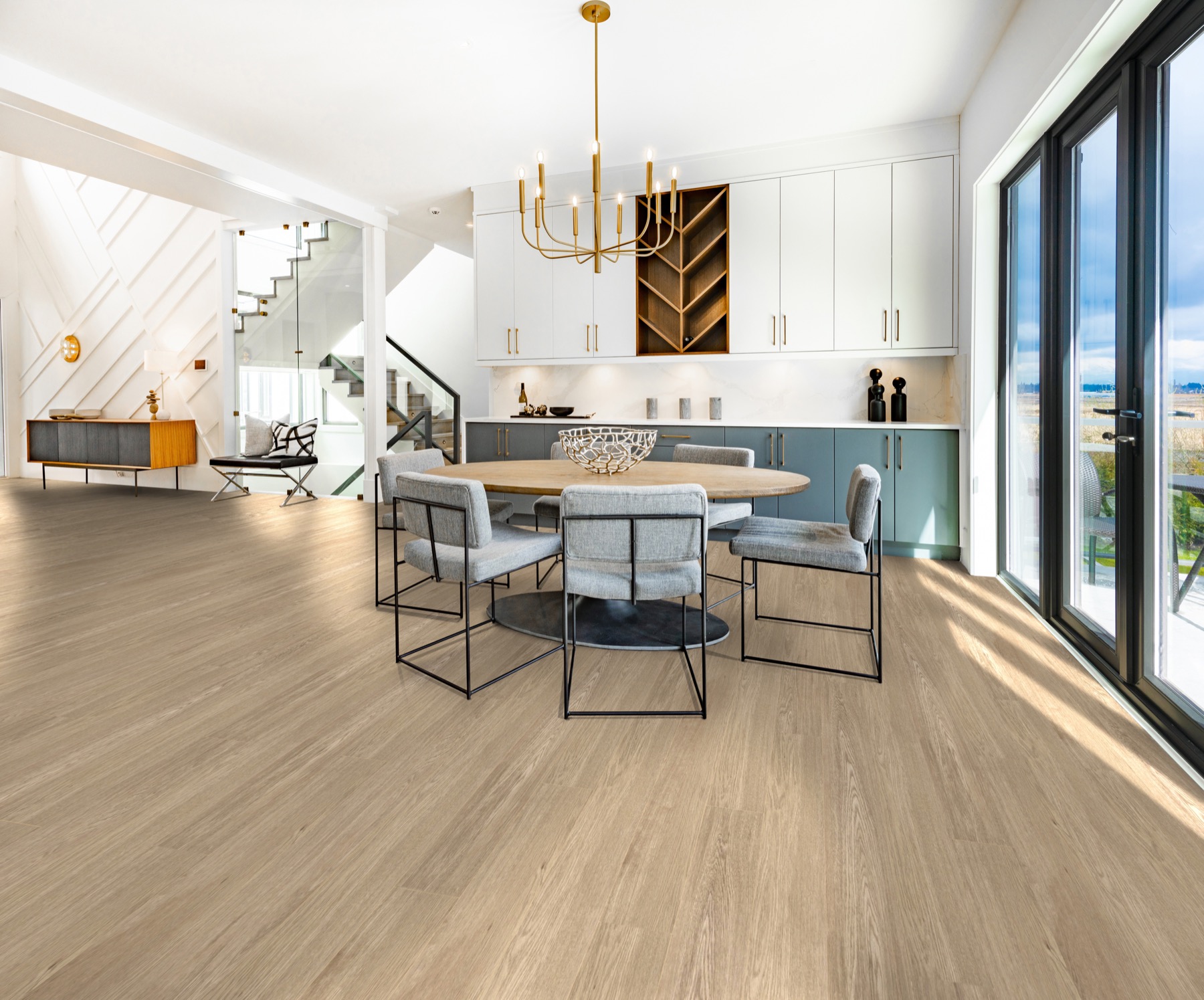

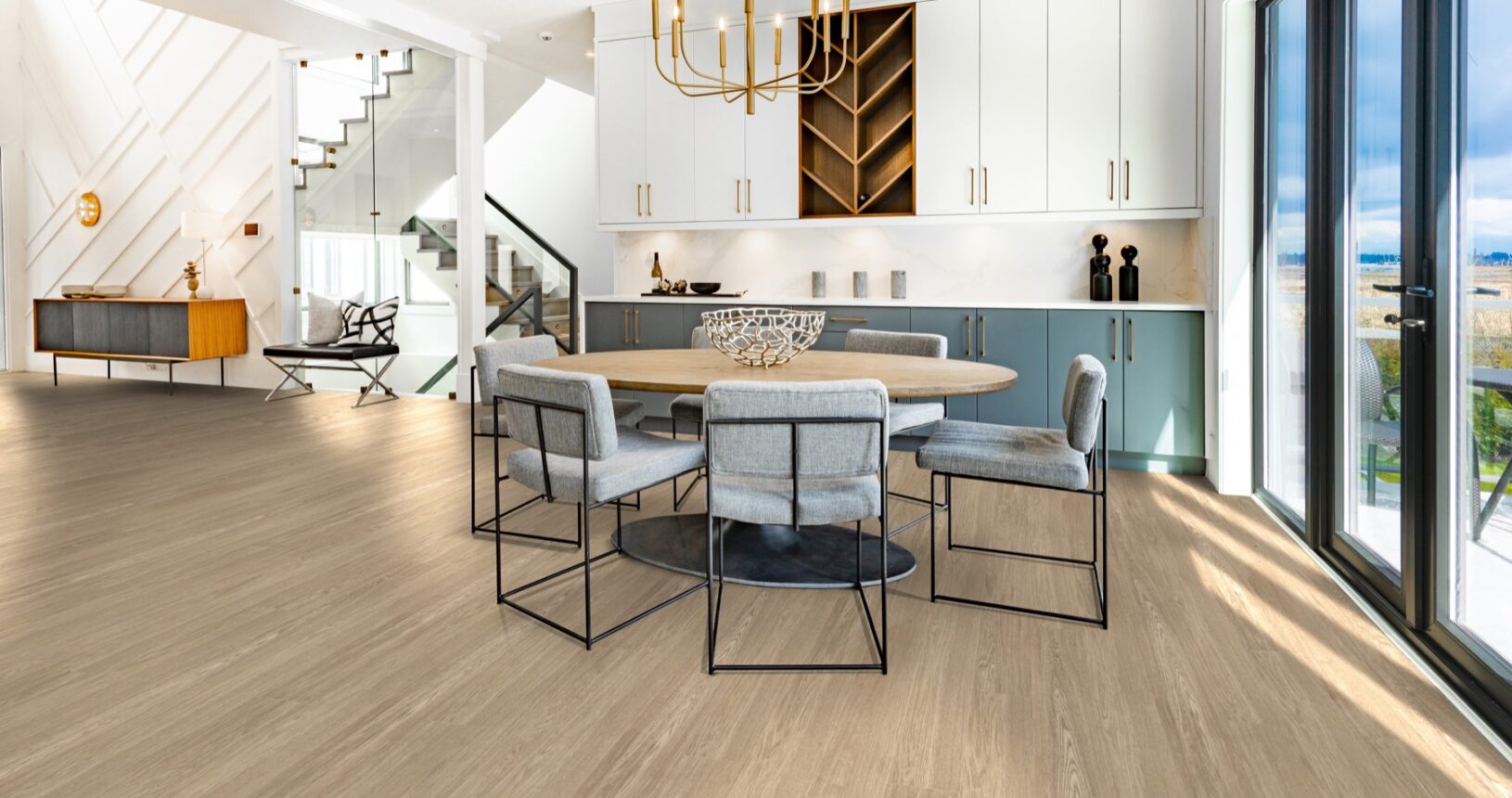

: Baltic Oak Taupe
2.0 mm: BO002-203K / 2.5 mm: BO002-2555K / 5.0 mm: BO002L-K

: Peninsula Oak Canyon
2.0 mm: PO002-203K / 2.5 mm: PO002-2555K / 5.0 mm: PO002L-K

: Peninsula Oak Plains
2.0 mm: PO004-203K / 2.5 mm: PO004-2555K / 5.0 mm: PO004L-K

: Tuscany Oak Medallion
2.0 mm: TO009-203K / 2.5 mm: TO009-2555K / 5.0 mm: TO009L-K

: Tuscany Oak Mist
2.0 mm: TO002-203K / 2.5 mm: TO002-2555K / 5.0 mm: TO002L-K

: Tuscany Oak Peanut
2.0 mm: TO008-203K / 2.5 mm: TO008-2555K / 5.0 mm: TO008L-K

: Tuscany Oak Snow
2.0 mm: TO001-203K / 2.5 mm: TO001-2555K / 5.0 mm: TO001L-K

Documents / Links

Product Construction Code:	CN LVT 2.0mm (0.3 wl, 1X)
ASTM F1700 - Solid Vinyl Tile Specification:	Class III, Type B
ASTM F2055 - Size:	Passes, ± 0.4 mm
ASTM F387 - Thickness of Resilient Flooring:	Passes, ± 0.13 mm
ASTM F2055 - Squareness:	Passes, ± 0.25 mm
ASTM F1914 - Residual Indentation:	Passes, ≤ 0.2 mm
ASTM F137 - Flexibility:	Passes, 25.4 mm mandrel
ASTM F2199 - Dimensional Stability:	Passes, < 0.5 mm / lin. ft.
ASTM F925 - Chemical Resistance:	Passes ASTM F1700 requirements
ASTM F1514 - Color Heat Resistance:	Passes, < ΔE 8
ASTM F1515 - Color Light Resistance:	Passes, < ΔE 8
ASTM F970 - Static Load (Modified):	Passes, ≤ 0.4 mm indent, 1400 lbs.
ASTM D2047 - Static Coefficient of Friction:	Passes, > 0.5 SCOF (no ramps)
ASTM E648 (NFPA 253) - Critical Radiant Flux:	Class 1, > 0.45 W/cm2
ASTM E662 (NFPA 258) - Smoke Density:	Passes, < 450
ASTM E492 / E989 - Impact Insulation Class:	IIC 55* (w/ F-22-SCU)
ASTM E90 / E413 - Sound Transmission Class:	STC 50* (w/ F-22-SCU)
ASTM E2179 - Delta Impact Insulation Class:	ΔIIC 24* (w/ F-22-SCU)
	* 6" concrete
