2VRSETM

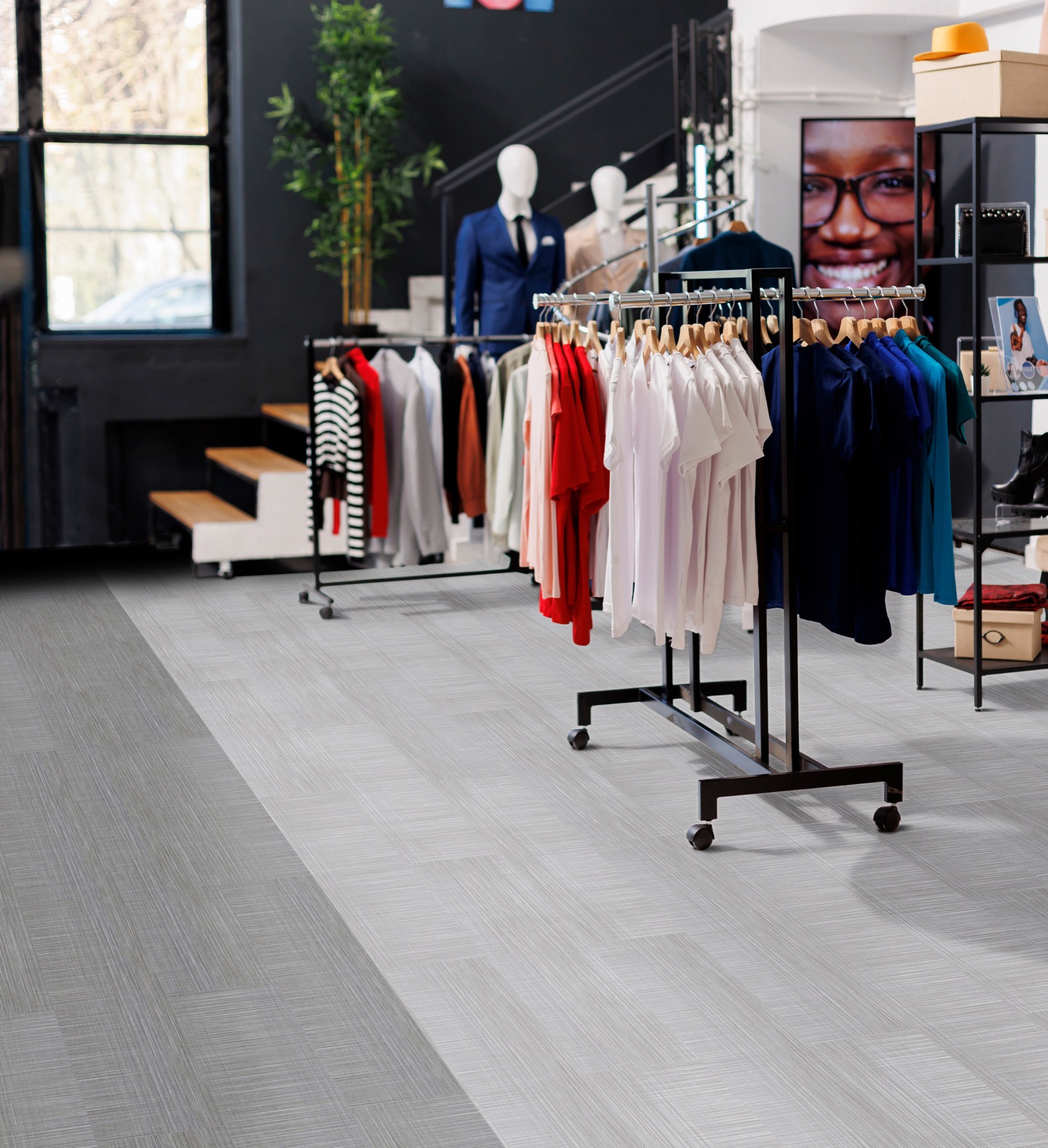

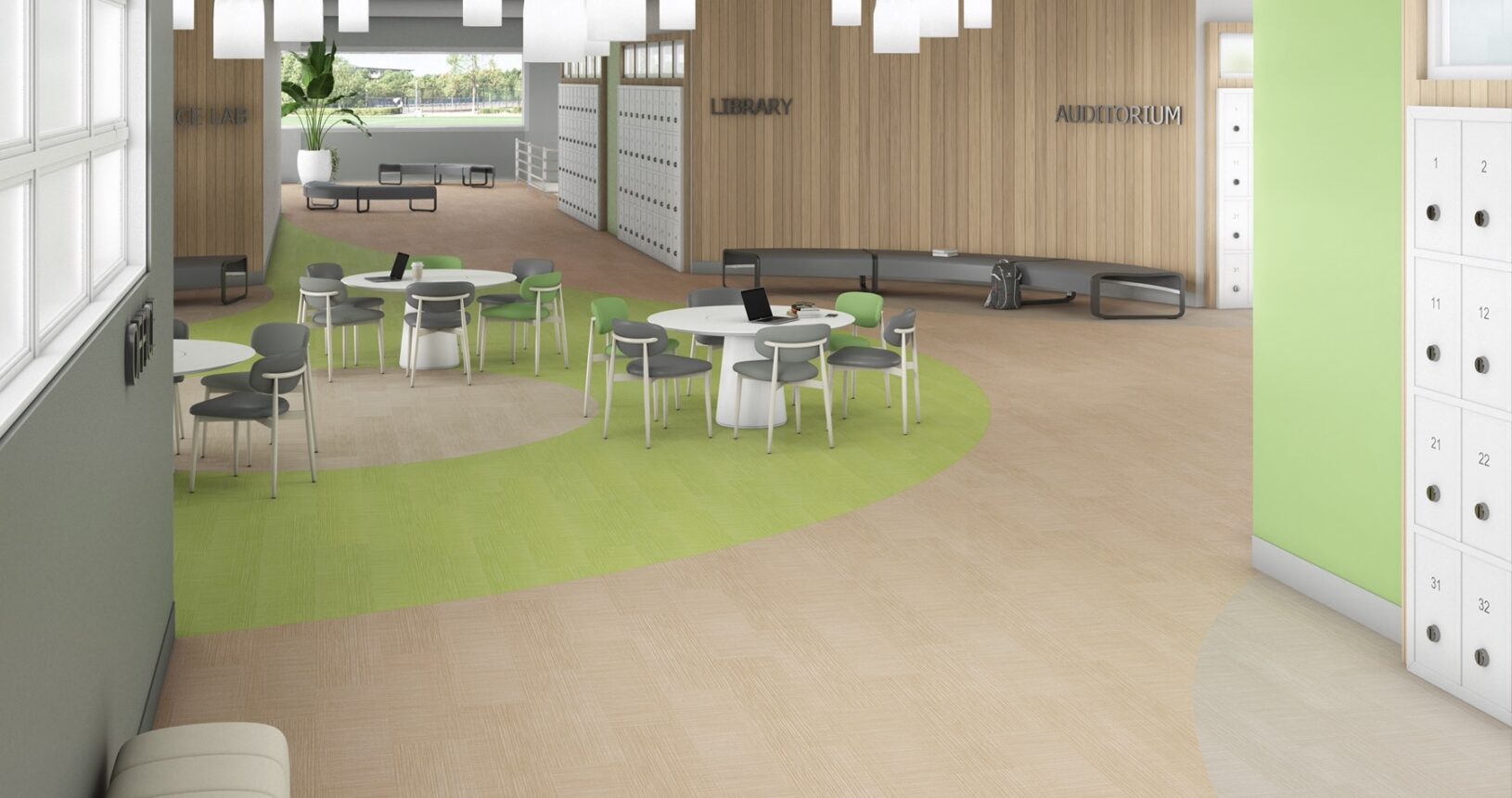

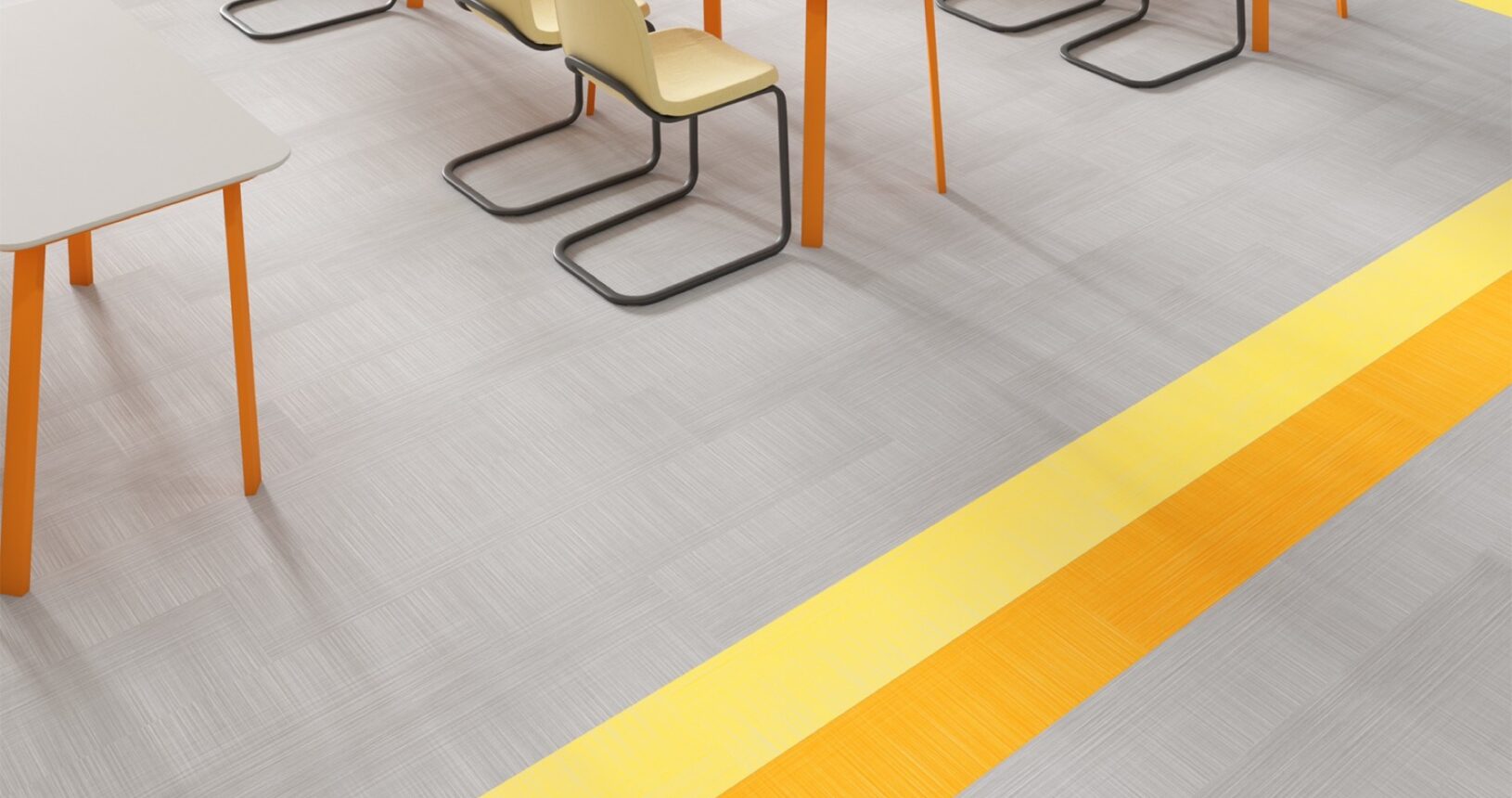

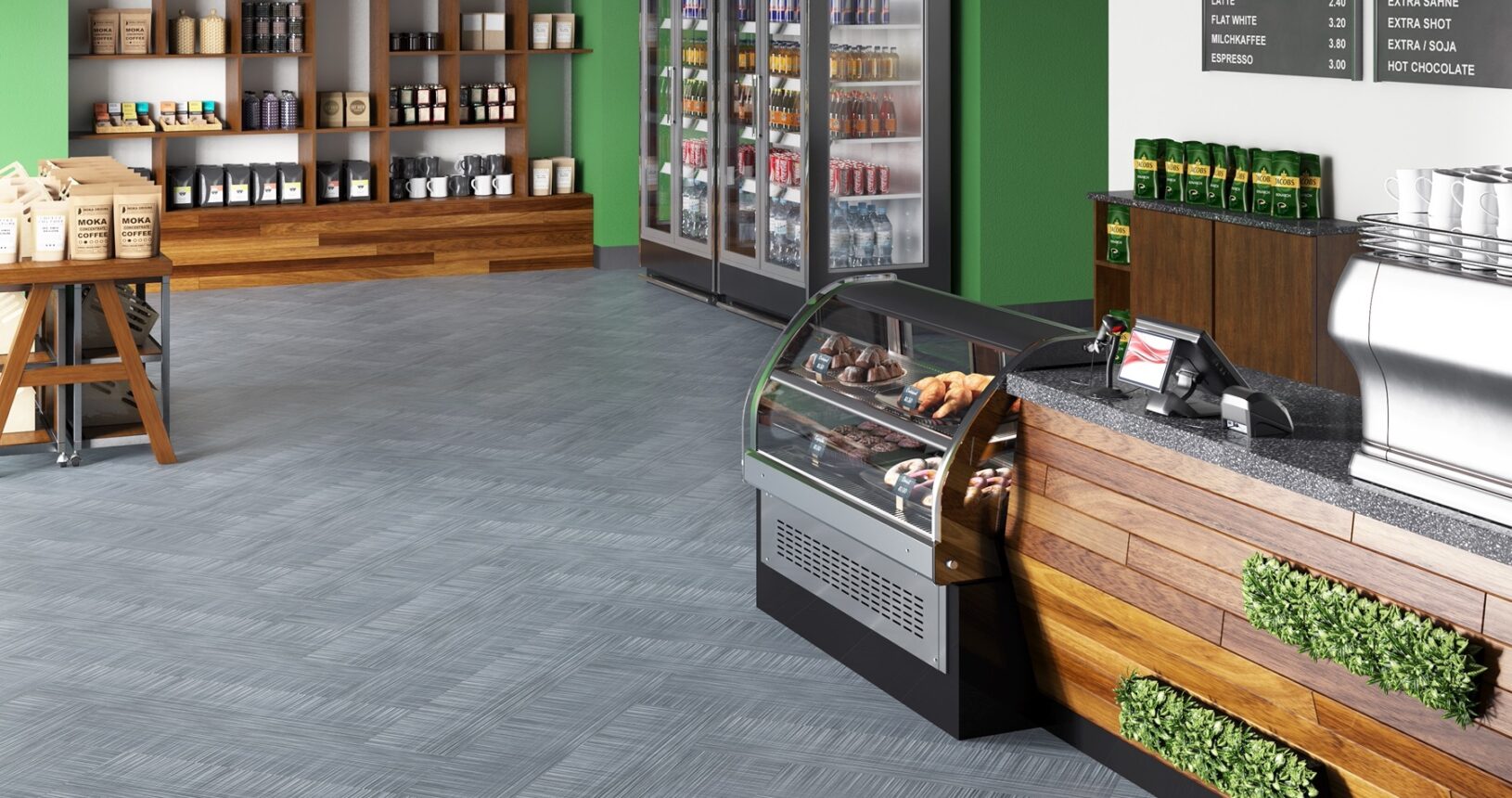

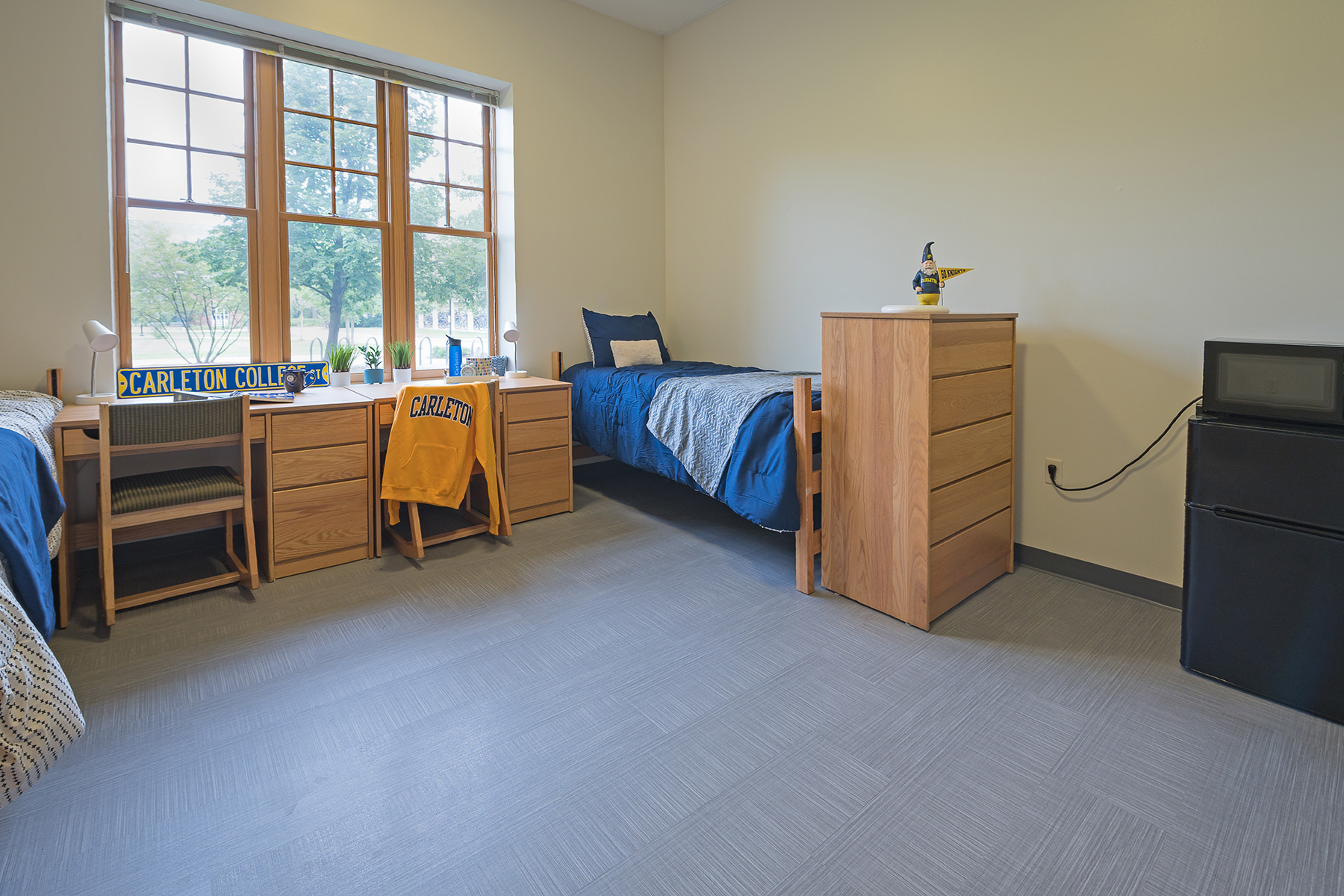

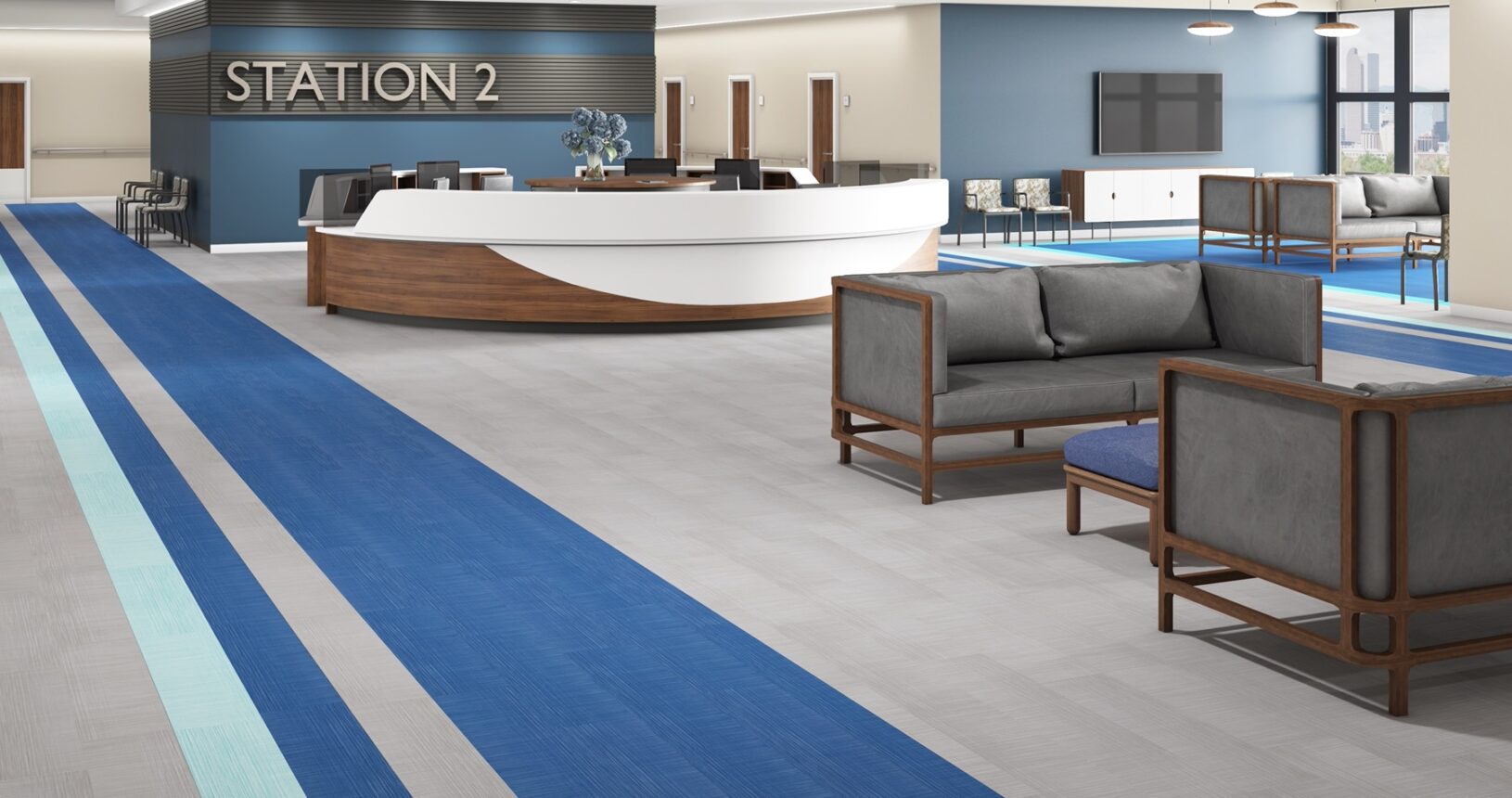

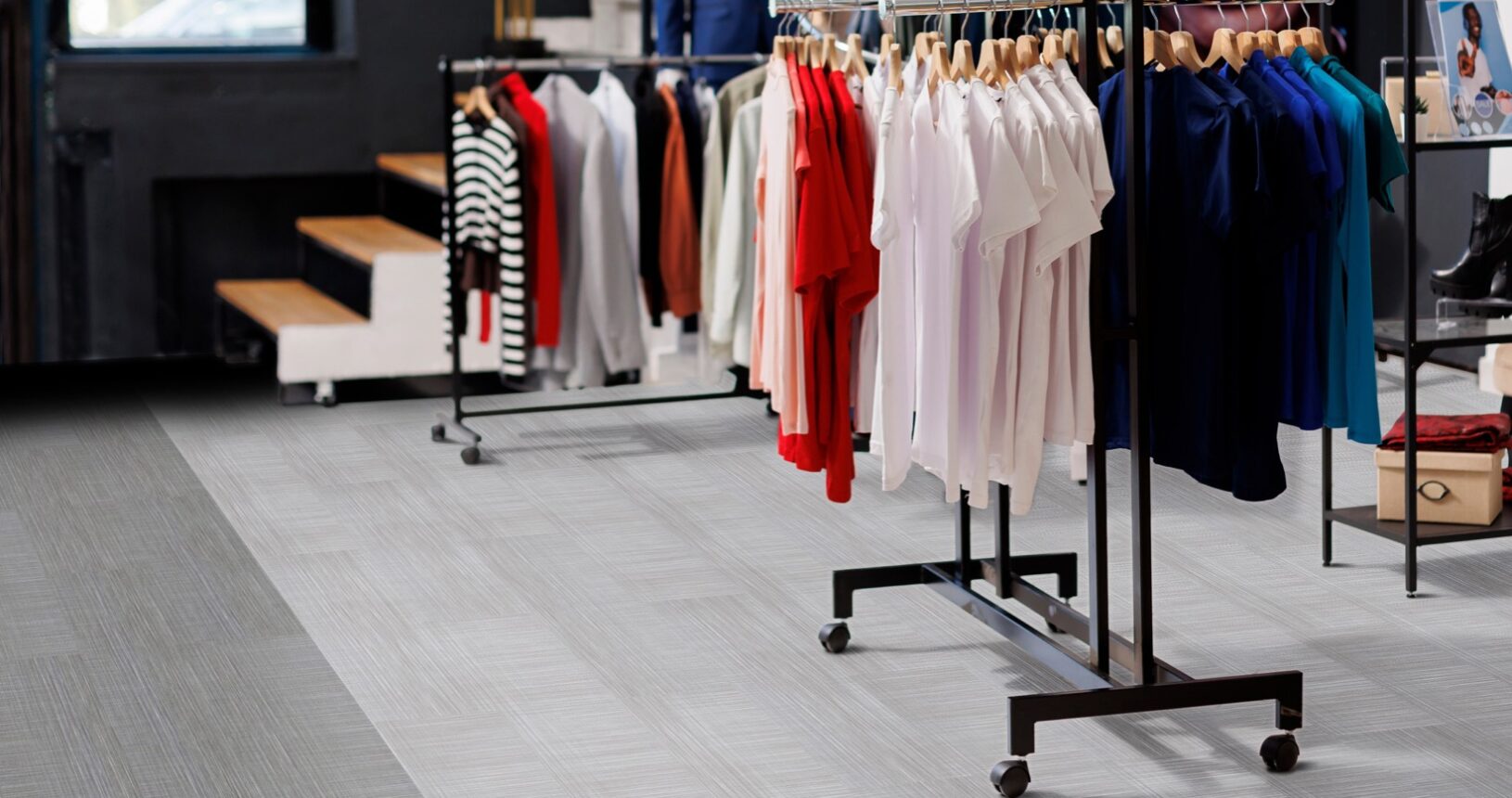

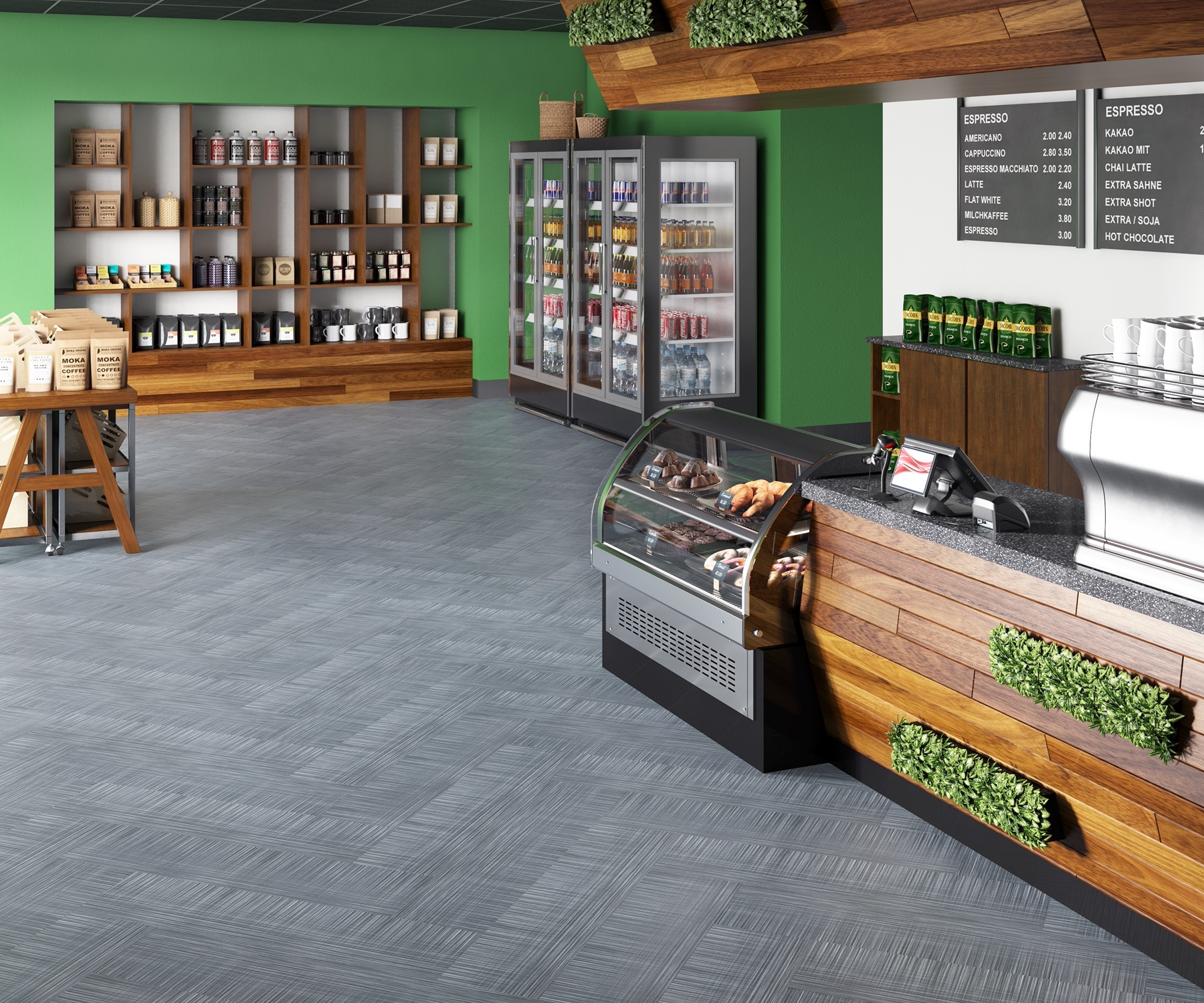

Featuring seven new bold colors, the multi-directional look of 2VRSETM offers unique design and installation flexibility compared to your average linear patterns. The crosshatch design of the 2VRSETM pattern provides tone-on-tone shading and dimensional impact that most linear patterns cannot achieve. Now with more impactful colors, 2VRSETM creates striking designs that stand out and get noticed in Workplace/Corporate, Education, Hospitality and Retail environments.

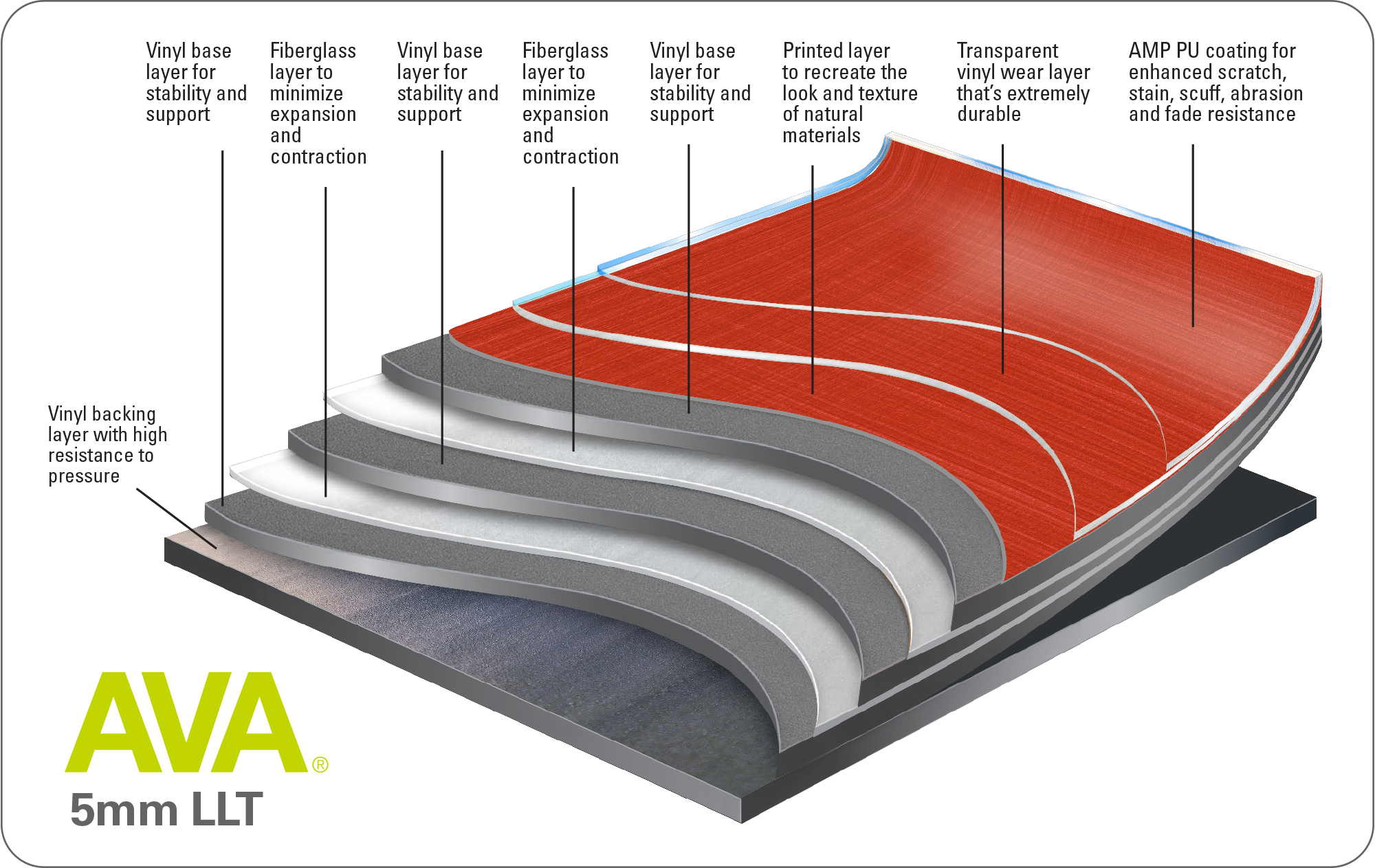

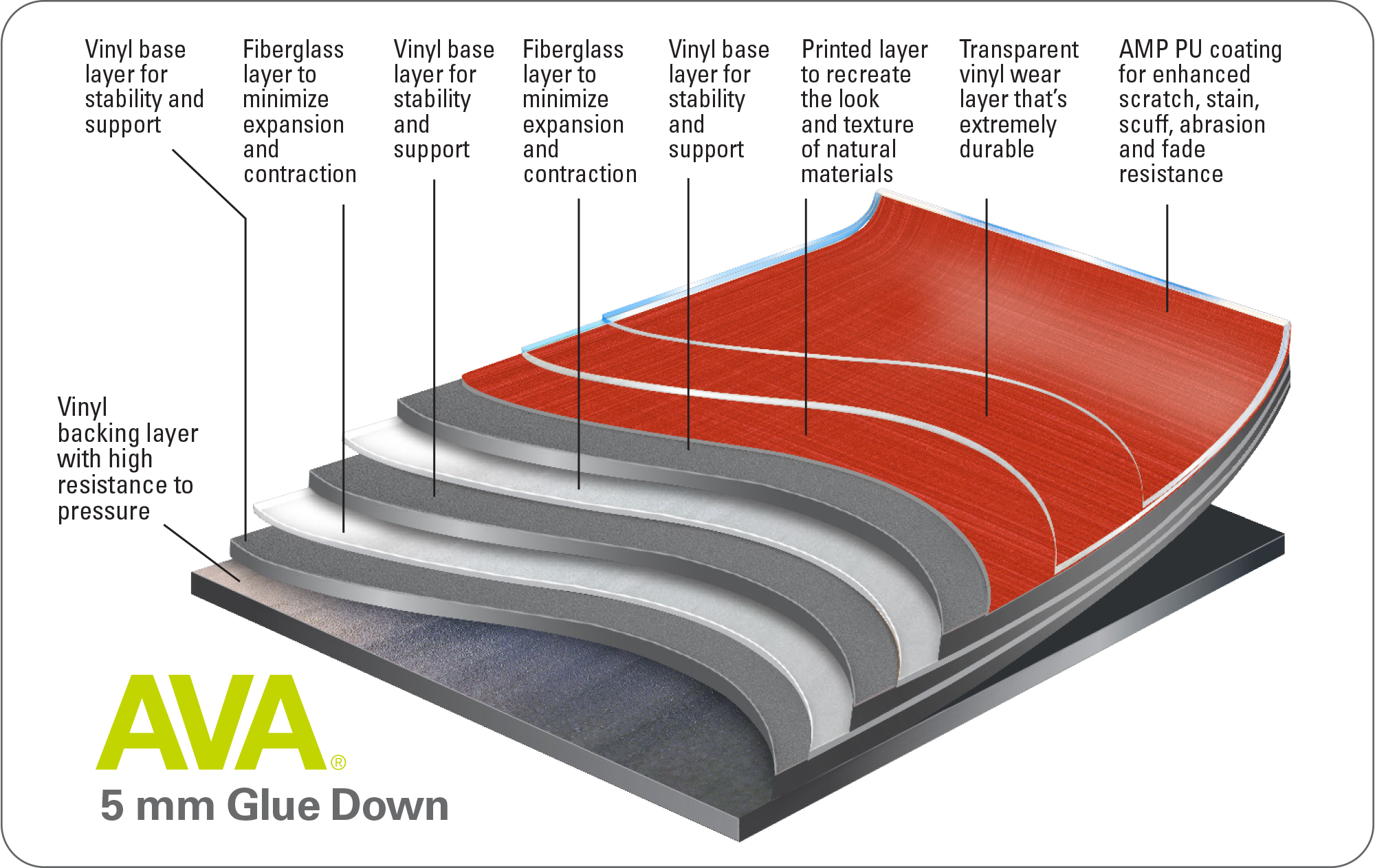

2VRSETM is available in 9.84” x 39.37” (250mm x 1000mm) tiles featuring a 22 mil wear layer in either 2.5 mm Glue Down and 5.0 mm LLT constructions. The patented AMP Advantage coating features high-strength, diamond-like wear-resistance particles that exceed the hardness of tungsten and aluminum oxide to deliver 30% more scratch-resistance over typical coatings.
| SPECIFICATIONS: | |
|---|---|
| ASTM F1700 SOLID VINYL TILE: | CLASS III, TYPE B |
| ASTM F2055 Size: | Passes, ± 0.4 mm |
| ASTM F387 Thickness of Resilient Flooring: | Passes, ± 0.13 mm |
| ASTM F410 Wear Layer Thickness: | Passes, ≥ 0.5 mm |
| ASTM F2055 Squareness: | Passes, ± 0.25 mm |
| ASTM F1914 Residual Indentation: | Passes, ≤ 0.2 mm |
| ASTM F137 Flexibility: | Passes, 25.4mm Mandrel |
| ASTM F2199 Dimensional Stability: | Passes, < 0.5 mm / lin. ft. |
| ASTM F925 Chemical Resistance: | Passes ASTM F1700 requirements |
| ASTM F1514 Resistance to Heat: | Passes, < ΔE 8 |
| ASTM F1515 Resistance to Light: | Passes, < ΔE 8 |
| ASTM F970 Static Load (Modified): | ≤ 0.4 mm indent, 1500 lbs. |
| ASTM E648 (NFPA 253) Critical Radiant Flux: | Class I, >0.45 W/cm2 |
| ASTM E662 (NFPA 258) Smoke Density: | Passes, <450 |
| ASTM D2047 / UL 410 Slip Resistance: | > 0.5 SCOF (no ramps) |
| ASTM E492 / E989 Impact Insulation Class: | 2.5 MM: IIC 56* (w/ F-22-SCU) / 5 mm: IIC 56* (w/ 22-SCU), IIC 56§ |
| ASTM E90 / E413 Sound Transmission Class: | 2.5 mm: STC 50* (w/ F-22-SCU) / 5 mm: STC 51* (w/ 22-SCU), STC 62§ |
| ASTM E2179 Delta Impact Insulation Class: | 2.5 mm: ΔIIC 25* (w/ F-22-SCU) / 5 mm: ΔIIC 24* (w/ 22-SCU), ΔIIC 16* |
| WEAR LAYER: | 22 MIL |
| OVERALL THICKNESS: | 2.5 MM GLUE DOWN; 5.0 MM LLT |
| SIZE: | 9.84″ x 39.37″ (250mm x 1000mm) |
| WARRANTY: | 20-YEAR COMMERCIAL AND LIFETIME RESIDENTIAL |
| 100% PHTHALATE FREE | REACH COMPLIANT |

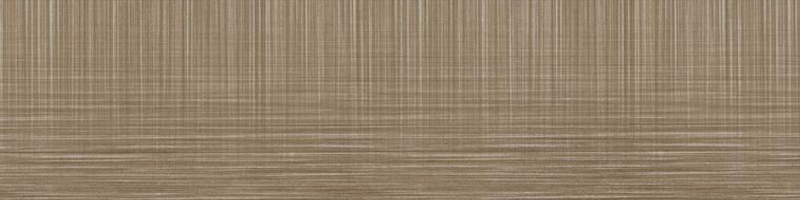

2VRSE Chanson 2VRS004
9.84″ x 39.37″ – Chanson GD: 2VRS004 / 5mm LLT: 2VRS004L

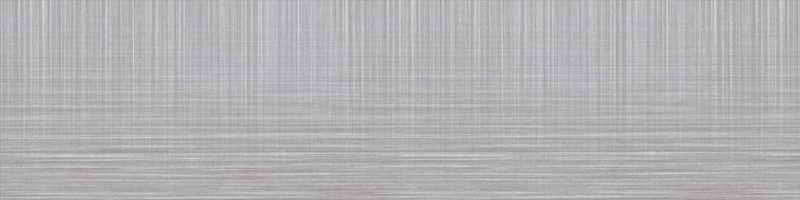

2VRSE Lyric 2VRS012
9.84″ x 39.37″ – Lyric GD: 2VRS012 / 5mm LLT: 2VRS012L

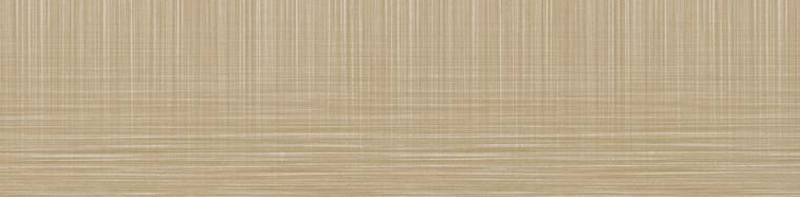

2VRSE Minuet 2VRS003
9.84″ x 39.37″ – Minuet GD: 2VRS003 / 5mm LLT: 2VRS003L

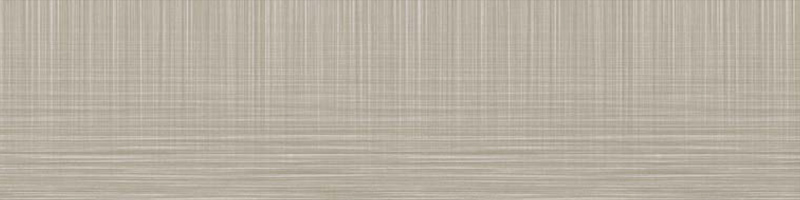

2VRSE Serenade 2VRS002
9.84″ x 39.37″ – Serenade GD: 2VRS002 / 5mm LLT: 2VRS002L

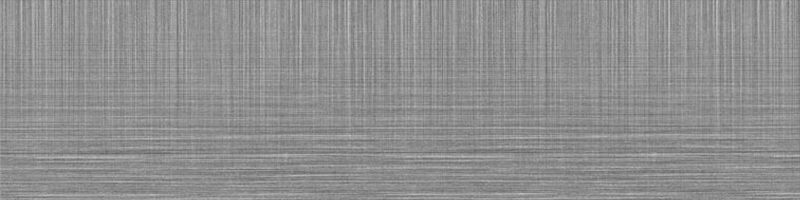

2VRSE Treble 2VRS013
9.84″ x 39.37″ – Treble GD: 2VRS013 / 5mm LLT: 2VRS013L

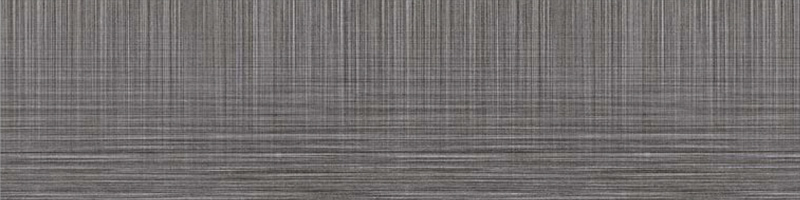

2VRSE Rubato 2VRS014
9.84″ x 39.37″ – Rubato GD: 2VRS014 / 5mm LLT: 2VRS014L

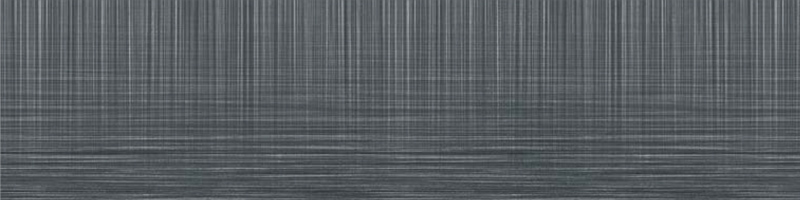

2VRSE Prelude 2VRS015
9.84″ x 39.37″ – Prelude GD: 2VRS015 / 5mm LLT: 2VRS015L

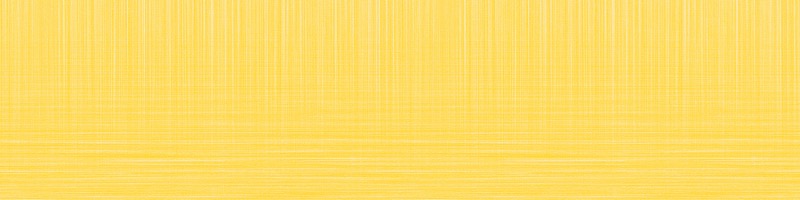

2VRSE Dolce 2VRS019
9.84″ x 39.37″ – Dolce GD: 2VRS019 / 5mm LLT: 2VRS019L

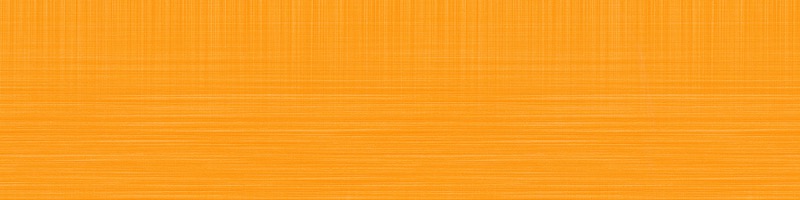

2VRSE Crescendo 2VRS018
9.84″ x 39.37″ – Crescendo GD: 2VRS018 / 5mm LLT: 2VRS018L

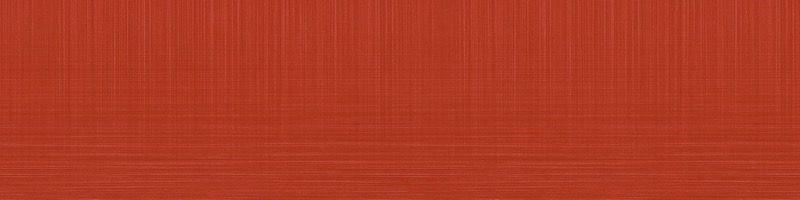

2VRSE Soprano 2VRS022
9.84″ x 39.37″ – Soprano GD: 2VRS022 / 5mm LLT: 2VRS022L

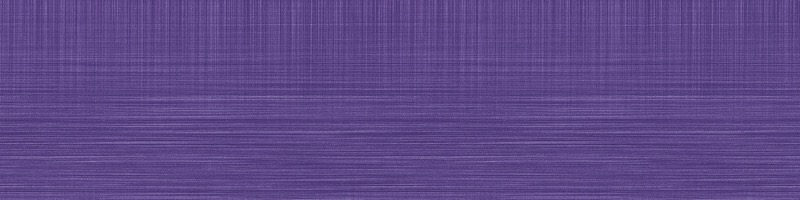

2VRSE Interlude 2VRS017
9.84″ x 39.37″ – Interlude GD: 2VRS017 / 5mm LLT: 2VRS017L

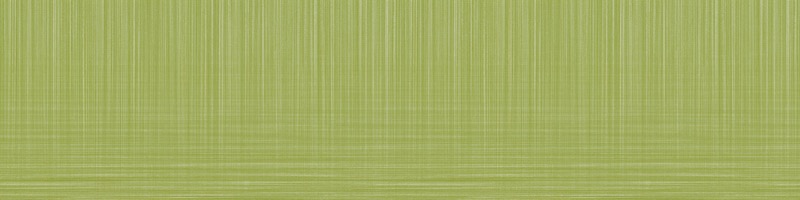

2VRSE Aria 2VRS023
9.84″ x 39.37″ – Aria GD: 2VRS023 / 5mm LLT: 2VRS023L

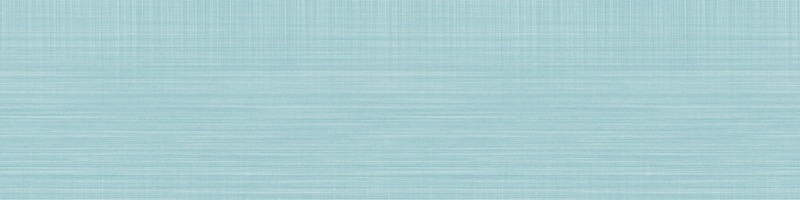

2VRSE Harmony 2VRS021
9.84″ x 39.37″ – Harmony GD: 2VRS021 / 5mm LLT: 2VRS021L
2VRSE Soprano 2VRS022
9.84″ x 39.37″ – Soprano GD: 2VRS022 / 5mm LLT: 2VRS022L
Color reproduction may vary with your computer or mobile device. For accurate color, please refer to actual product samples in our AVA architect folders or request samples from us.
With 24 trendy woods and 8 unique stone designs, the AVA® DSGN® collection is created with the corporate, retail and hospitality sectors in mind.
CLICK TO ENLARGE
Color reproduction may vary with your computer or mobile device. For accurate color, please refer to actual product samples in our AVA architect folders or request samples from us.
All AVA® DSGN® patterns are available in glue down, loose lay and Angle/Angle Clic installation systems. Many AVA® DSGN® patterns in all three installation systems are readily available through our USA quick ship program.

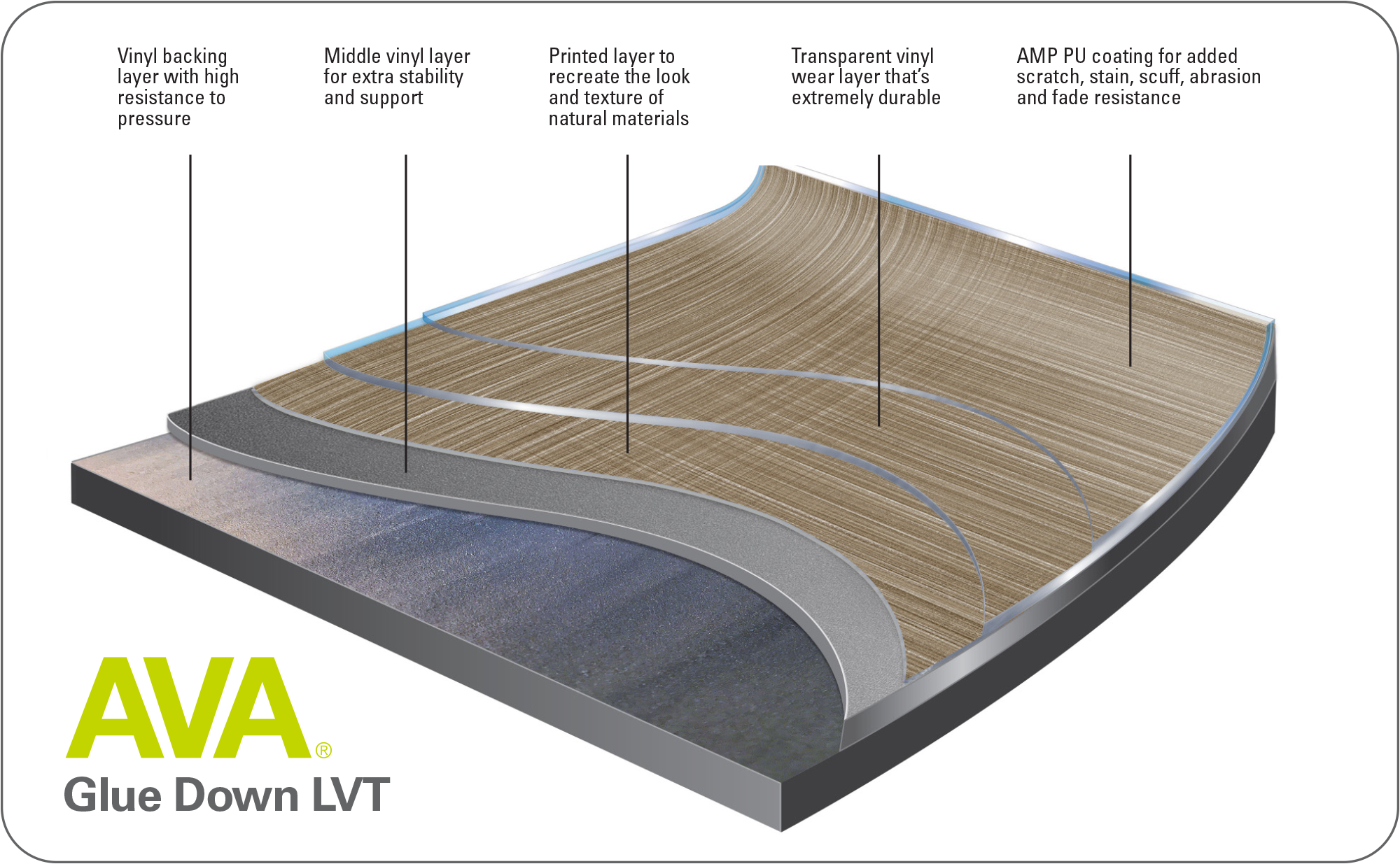

Glue Down: the perfect long term flooring solution for heavy traffic areas including areas with heavy rolling loads. With a variety of applications, the glue down system is used in virtually all commercial sectors.
Loose Lay: simple and easy to install, removable and replaceable, the loose lay construction is the flooring choice for raised access applications as well as fast track and temporary installations.
Angle/Angle Clic Instalation is the latest generation of mechanically locked together vinyl floating flooring. The Angle/Angle Clic system is a simple yet secure fold down locking system. Soft underfoot, less permanent than glue down but a more fixed installation than loose lay, Angle/Angle Clic is the ideal flooring system for many applications.
CLICK TO ENLARGE
| SPECIFICATIONS: | |
|---|---|
| ASTM F1700-13 SOLID VINYL FLOOR TILE: | CLASS III, TYPE B |
| ASTM D2047 STATIC COF FOR POLISHED SURFACES: | EXCEEDS INDUSTRY STANDARDS |
| ASTM F970-07 STATIC LOAD LIMIT: | PASSES (MODIFIED EXCEEDS 1000 LBS PSI) |
| ASTM E648 CRITICAL RADIANT FLUX: | CLASS 1 |
| ASTM E662 SMOKE DENSITY: | PASSES |
| ASTM F925 STAIN & CHEMICAL RESISTANCE: | EXCELLENT |
| WEAR LAYER: | 20 MIL |
| OVERALL THICKNESS GLUE DOWN: | 2.5 MM |
| OVERALL THICKNESS LOOSE LAY: | 5.0 MM |
| OVERALL THICKNESS 5G CLIC: | 5.0 MM |
| WOOD SIZE GLUE DOWN: | 6” X 48” |
| WOOD SIZE LOOSE LAY: | 9” X 48” |
| WOOD SIZE 5G CLIC: | 7” X 48” |
| STONE SIZE GLUE DOWN: | 12” X 24” |
| STONE SIZE LOOSE LAY: | 18” X 36” |
| STONE SIZE 5G CLIC: | 12” X 24” |
| WARRANTY: | 10 YEAR COMMERCIAL WARRANTY |
| 100% PHTHALATE FREE | REACH COMPLIANT |
